Amplifier: Service and Repair

Stereo Amplifier Removal/Installation

1. Remove the right trunk side trim panel Interior Trim Removal/Installation - Trunk Area.

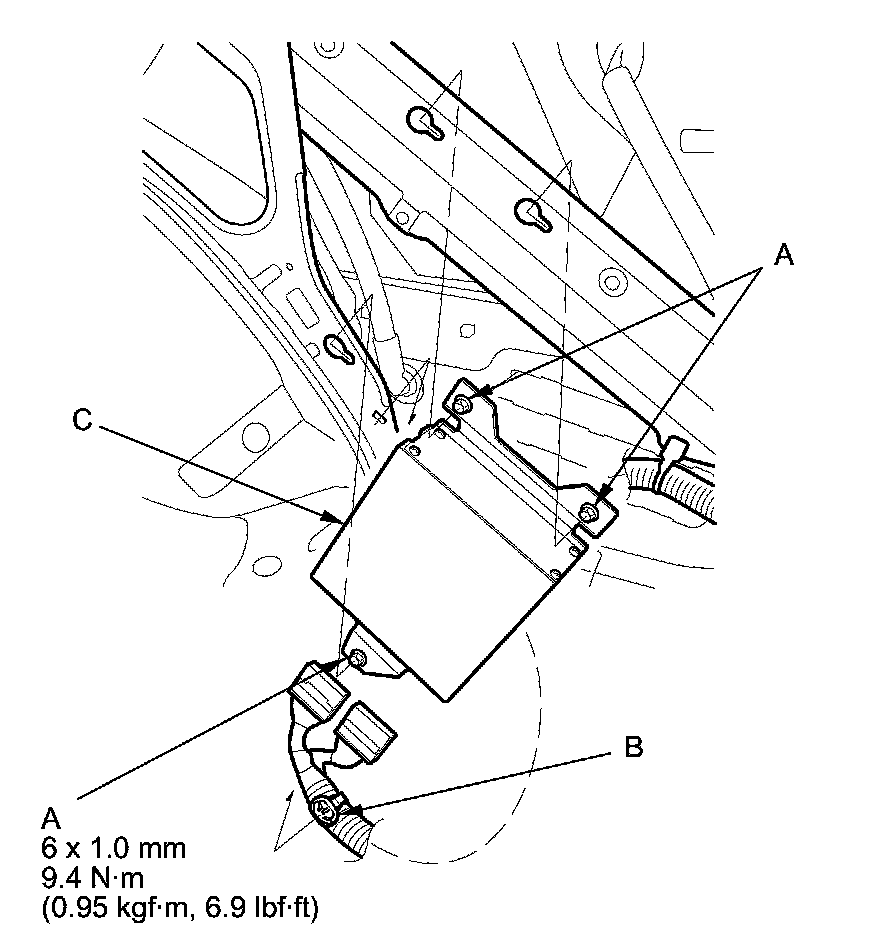

2. Loosen the mounting bolts (A), then detach the clip (B) and pull out the stereo amplifier (C).





3. Disconnect the connectors from the stereo amplifier, and remove it.

4. Install the stereo amplifier in the reverse order of removal.
