Window Antenna Coil Replacement

Window Antenna Coil Replacement

1. Remove the rear shelf Service and Repair.

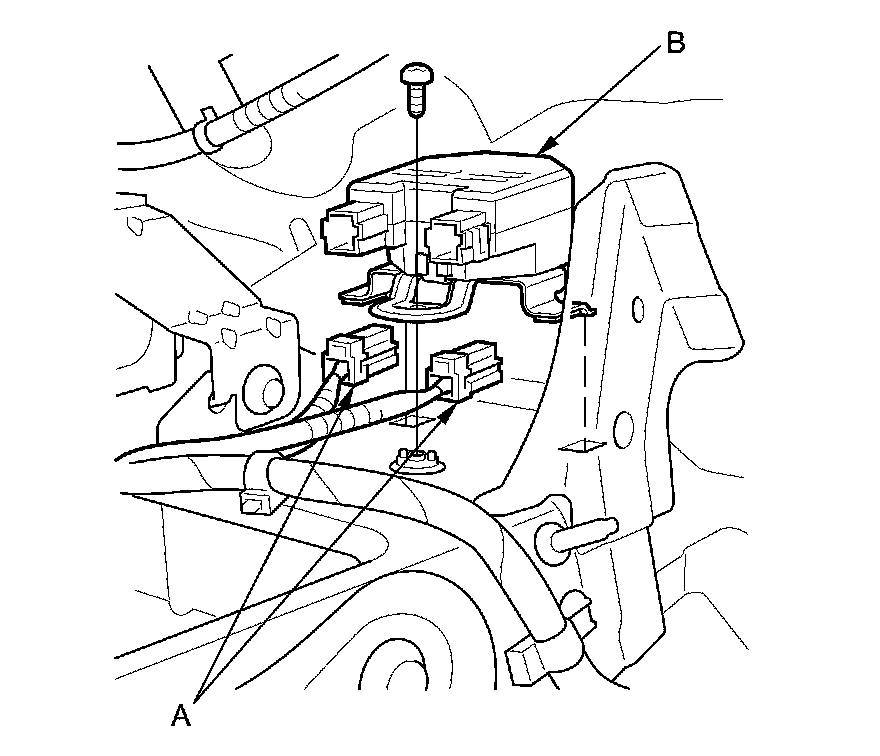

2. Disconnect the 1P connectors (A) from the glass antenna coil (B).





3. Remove the mounting screw, then remove the glass antenna coil.

4. Install the glass antenna coil in the reverse order of removal.
