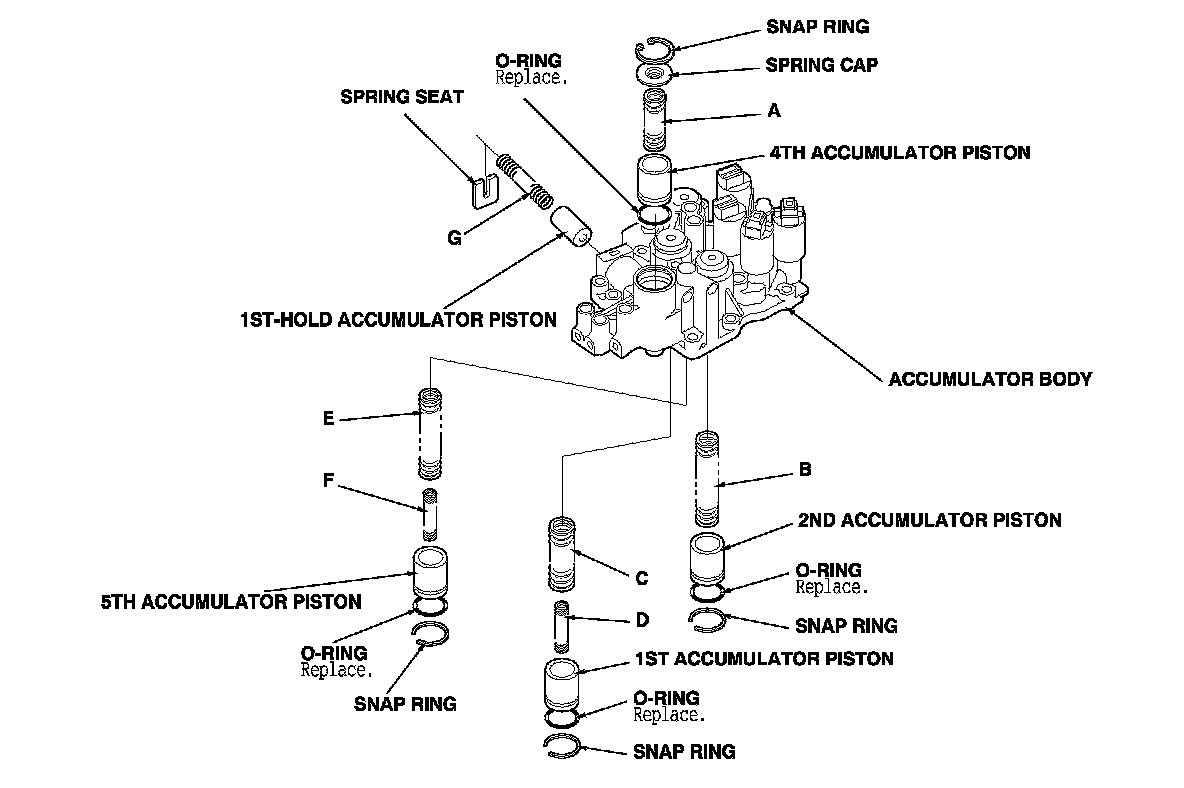

Accumulator Body Disassembly, Inspection, and Reassembly

Accumulator Body Disassembly, Inspection, and Reassembly

1. Clean all parts thoroughly in solvent, and dry them with compressed air. Blow out all passages.

2. Inspect the accumulator body for scoring and damage.

3. Coat all parts with ATF during assembly.

4. Replace the O-rings with new ones.

VALVE SPRING SPECIFICATIONS
