Home >> Acura >> 2010 >> RL V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Rear Headrest Subharness, Rear Headrest Actuator Subharness And Rear Seat Cushion Header Subharness Connector And Harness

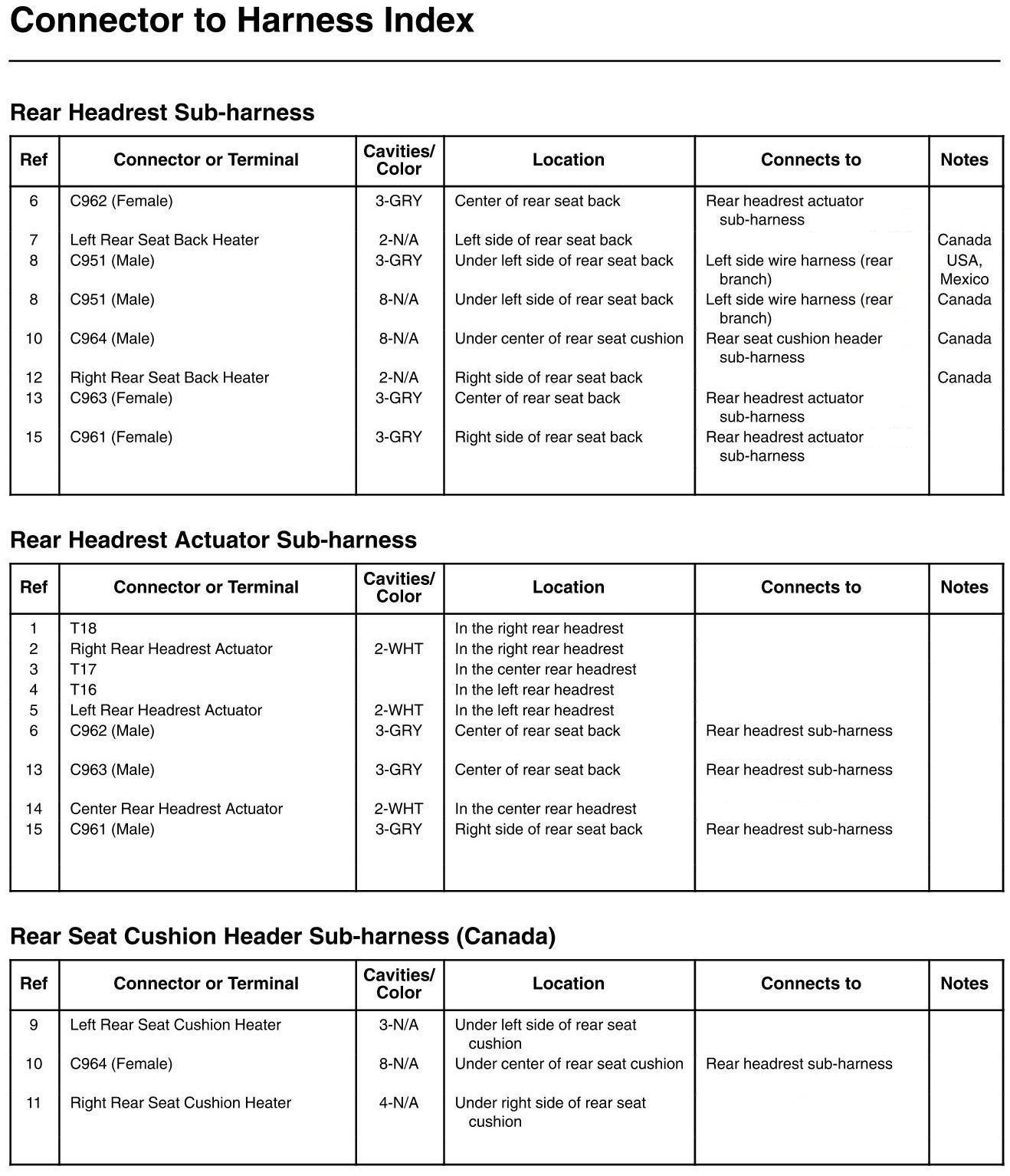

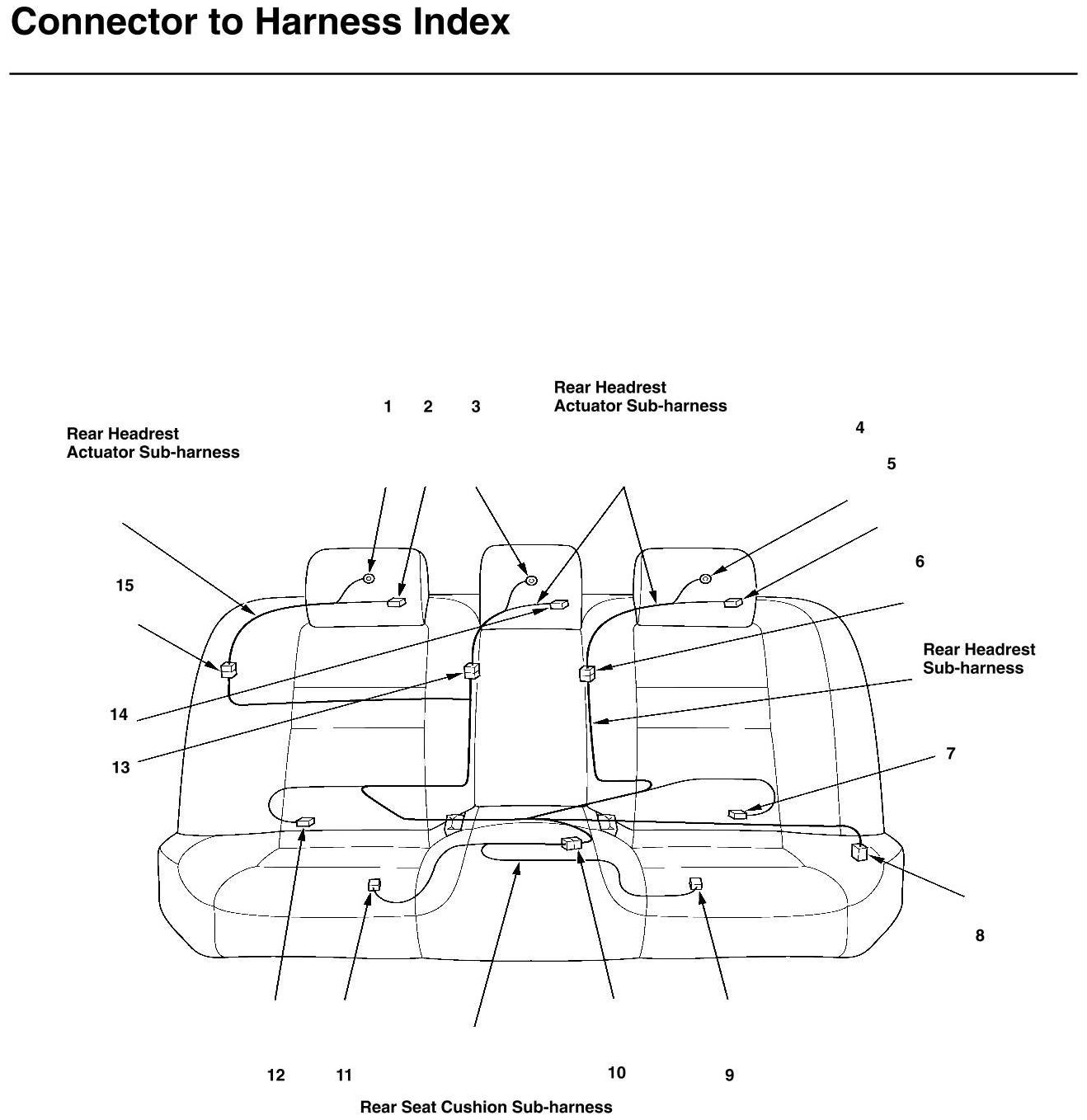

Rear Headrest Subharness, Rear Headrest Actuator Subharness And Rear Seat Cushion Header Subharness Connector And Harness
