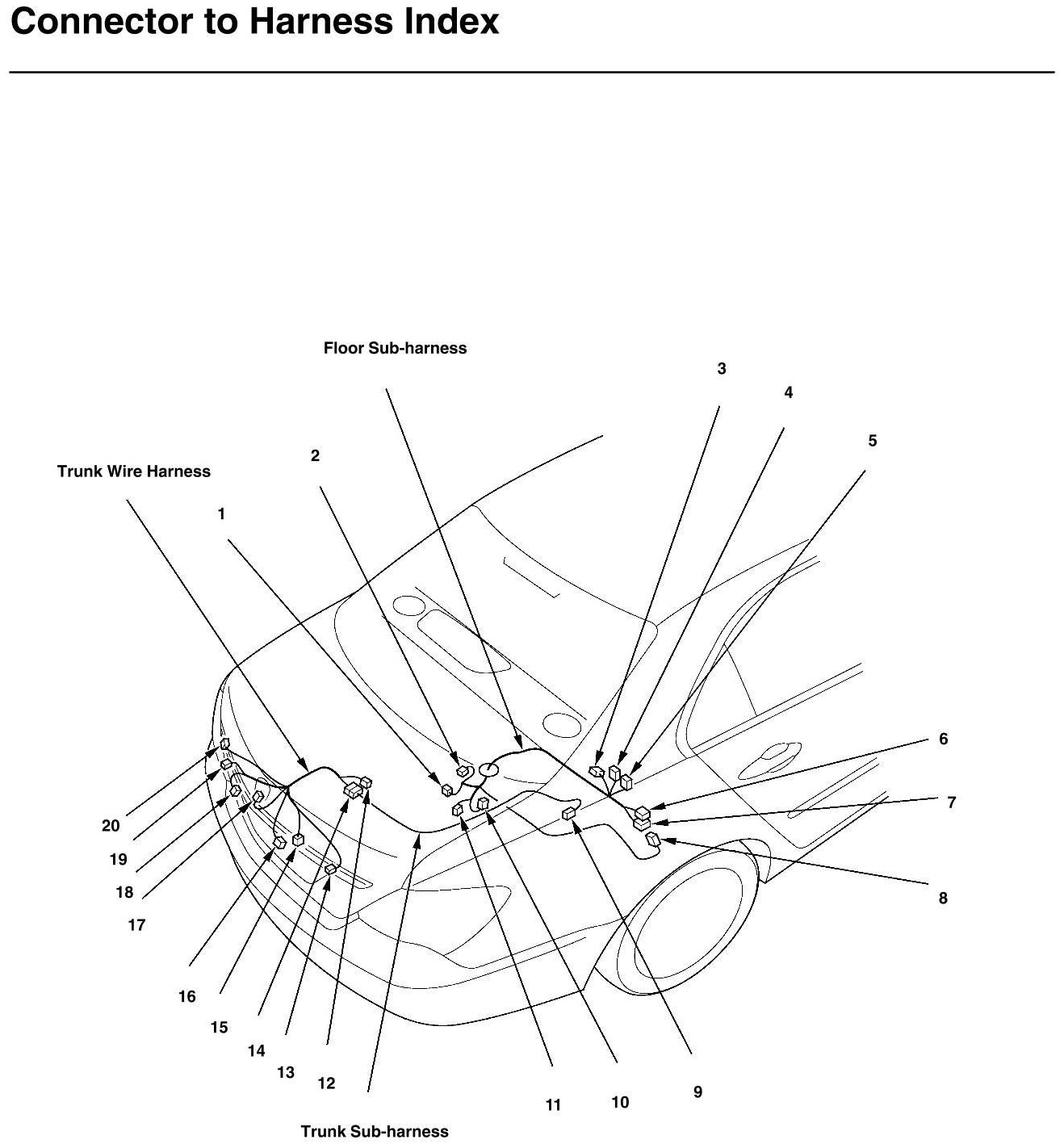

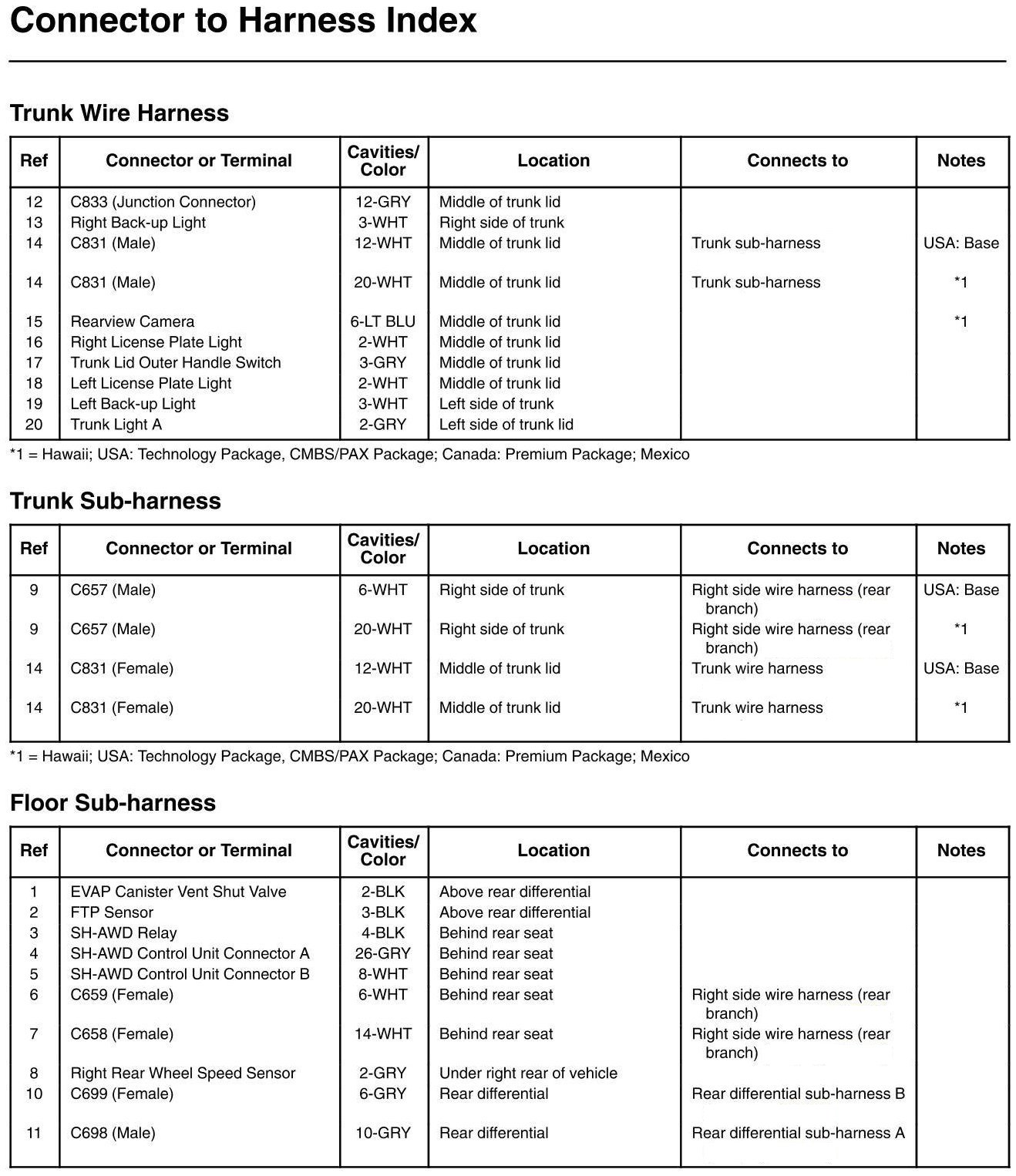

Trunk Wire Harness, Trunk Subharness And Floor Subharness Connector And Harness Locations
Trunk Wire Harness, Trunk Subharness And Floor Subharness Connector And Harness Locations
