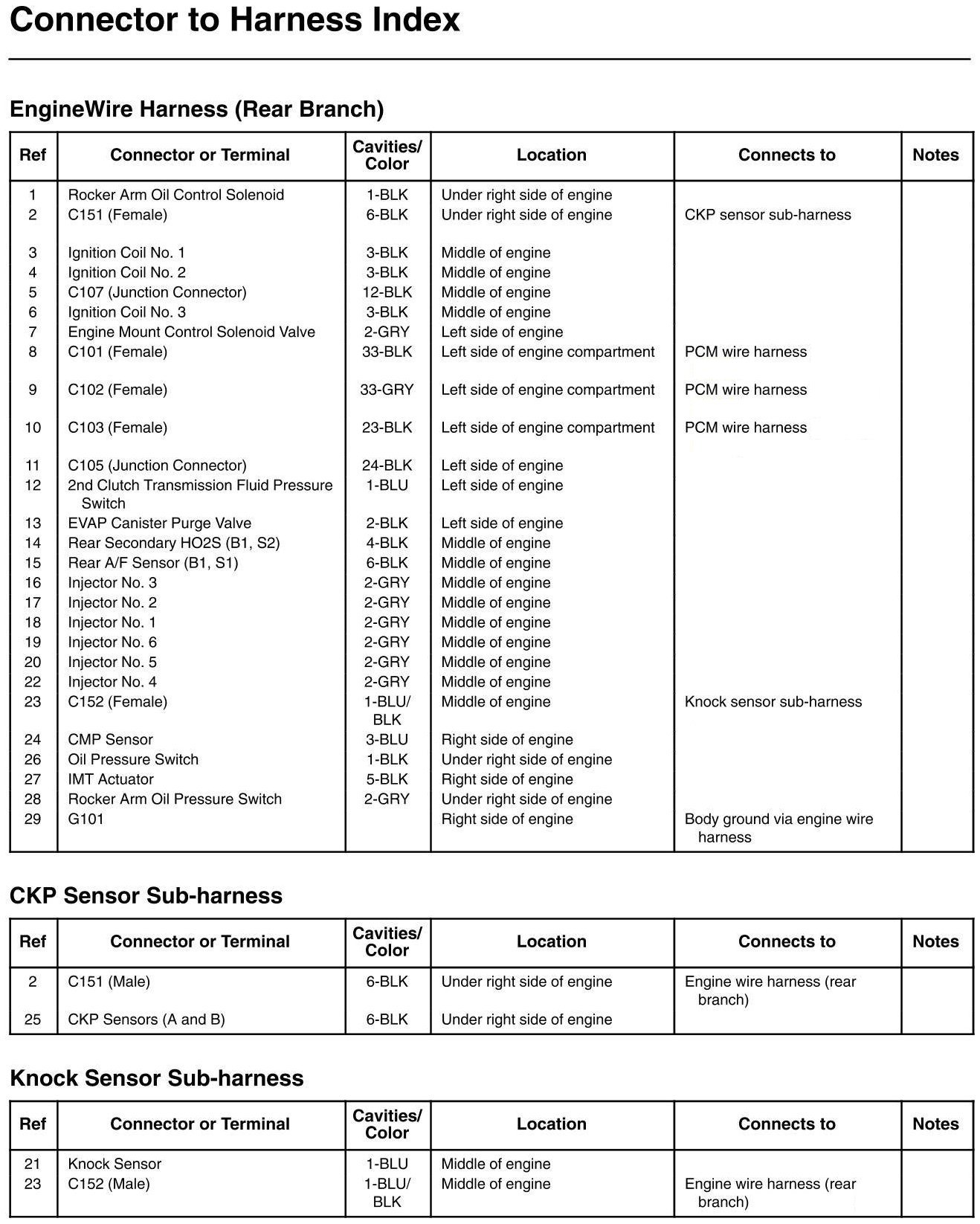

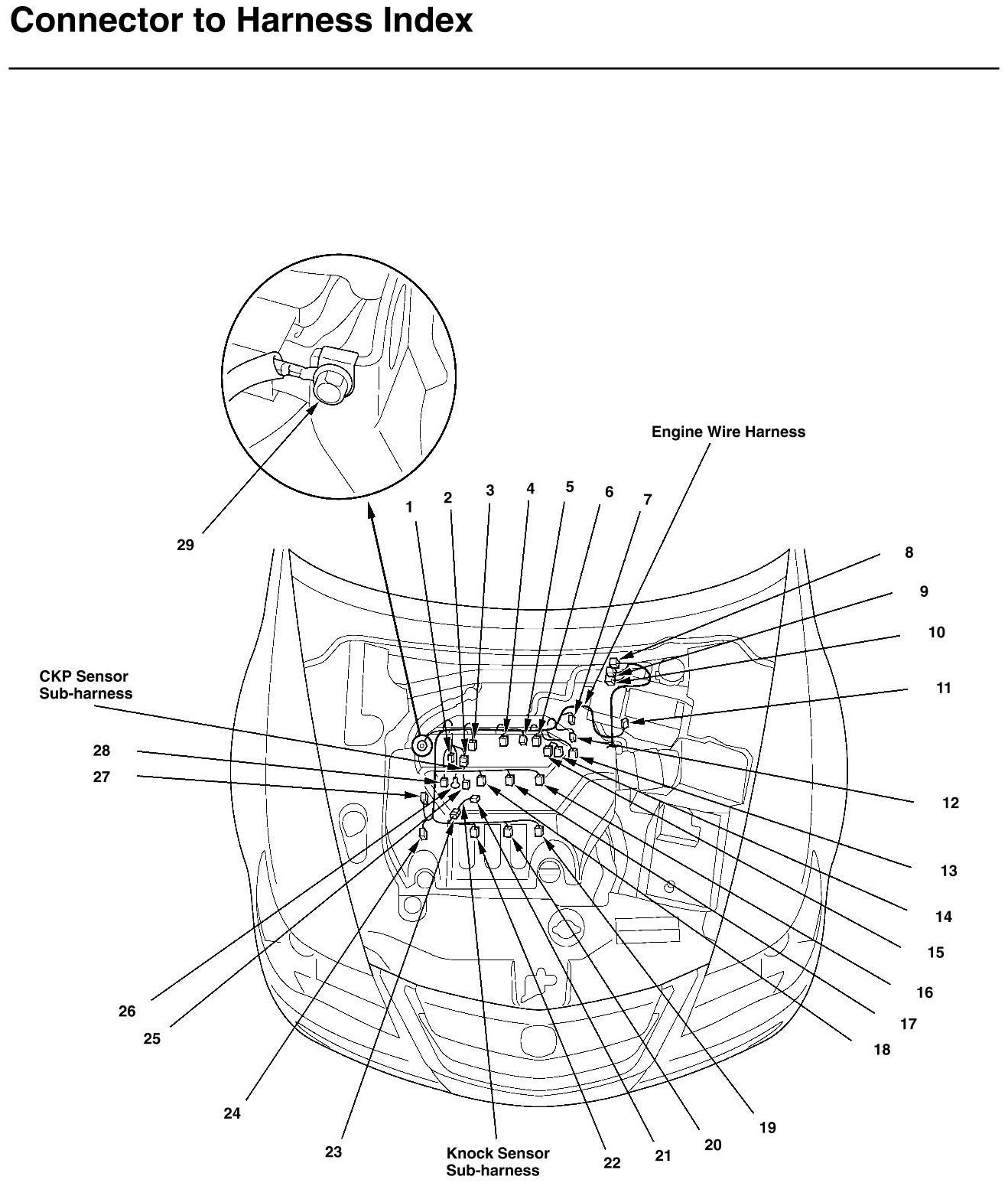

Engine Wire Harness (Rear Branch), CKP Sensor Subharness And Knock Sensor Subharness Connector And Harness Locations
