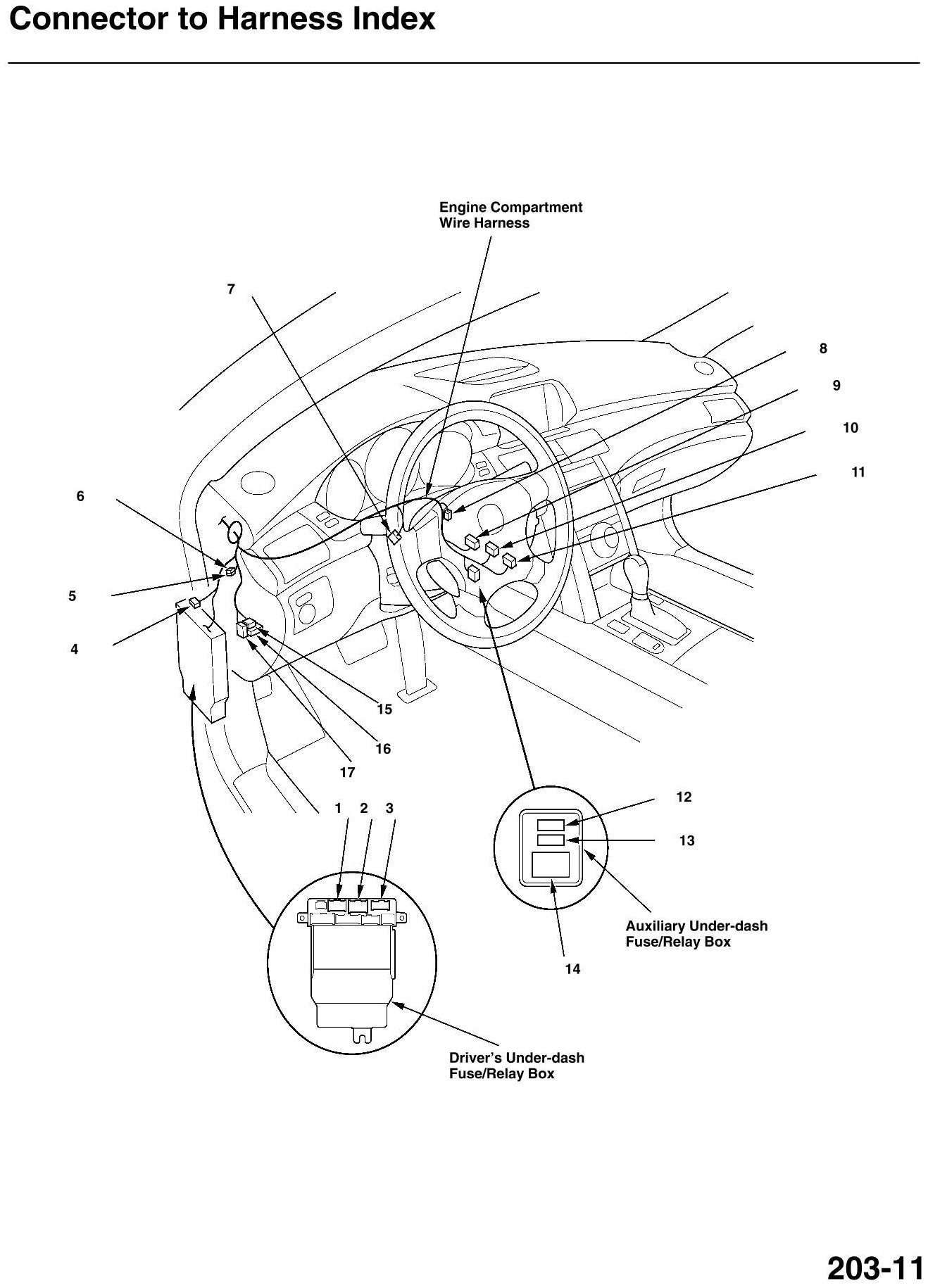

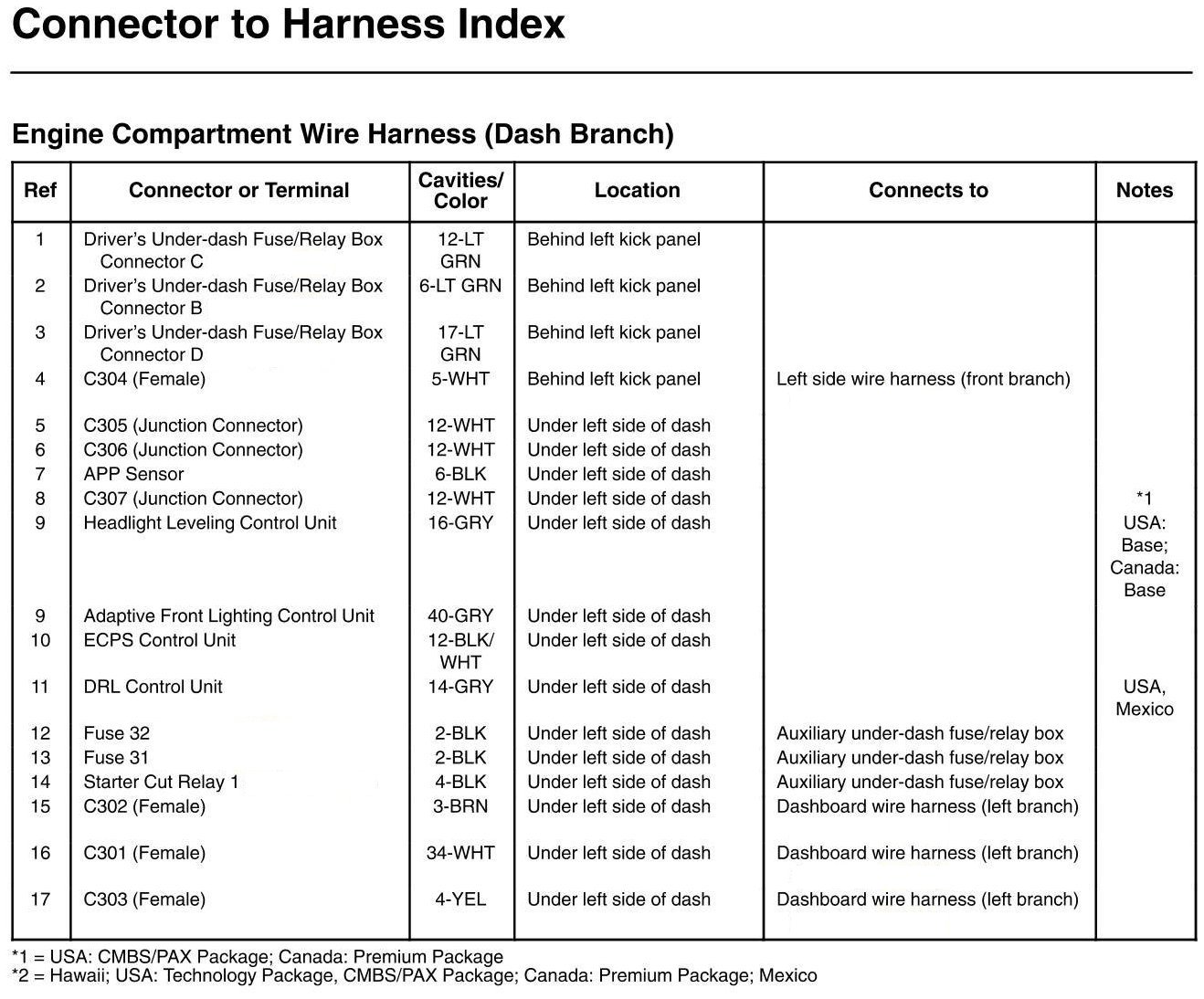

Engine Compartment Wire Harness (Dash Branch) Connector And Harness Locations
Engine Compartment Wire Harness (Dash Branch) Connector And Harness Locations
