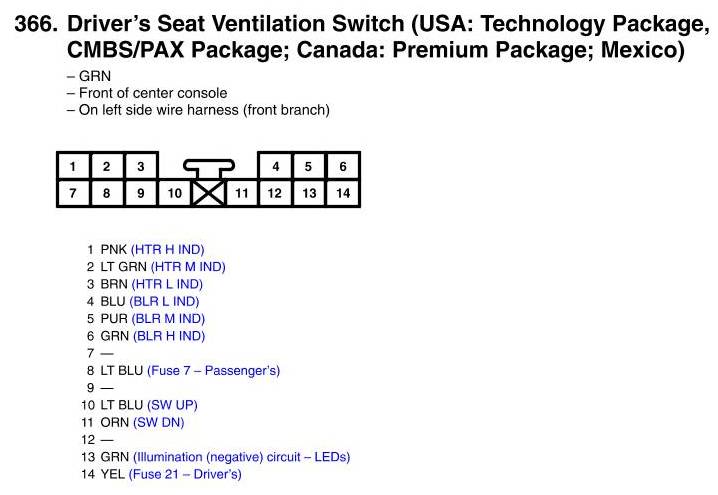

Driver's Seat Ventilation Switch Connector View (USA: Technology Package, CMBS/PAX Package; Canada: Premium Package; Mexico)
