Adaptive Front Lighting Control Unit Connector View (Hawaii; USA: Technology Package, CMBS/PAX Package; Canada Premium Package;

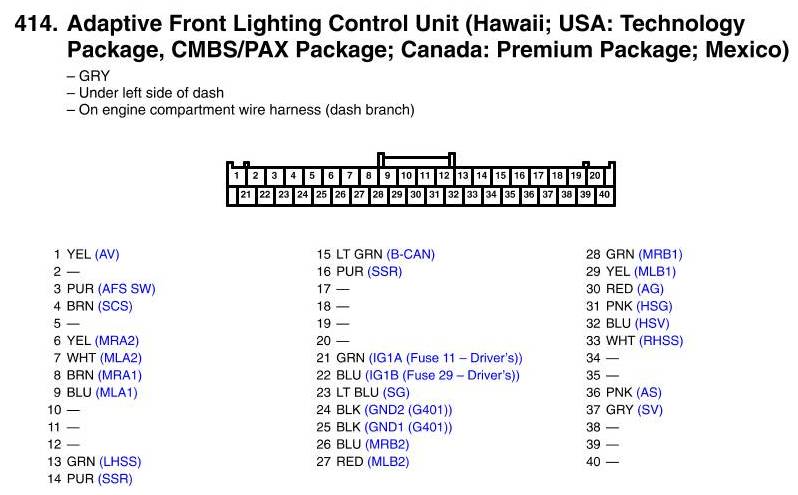

View 414 - Adaptive Front Lighting Control Unit Connector View (Hawaii; USA: Technology Package, CMBS/PAX Package; Canada Premium Package; Mexico)
