Home >> Acura >> 2010 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 397 - C931 Connector View

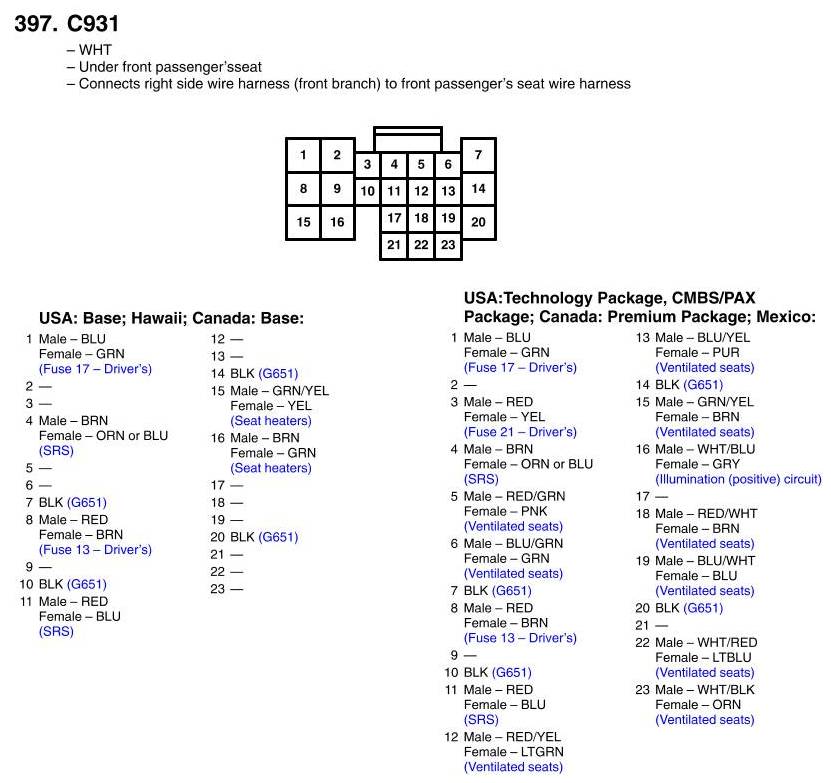

View 397 - C931 Connector View
