Home >> Acura >> 2010 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 339 - C552 (Junction Connector) Connector View (Canada)

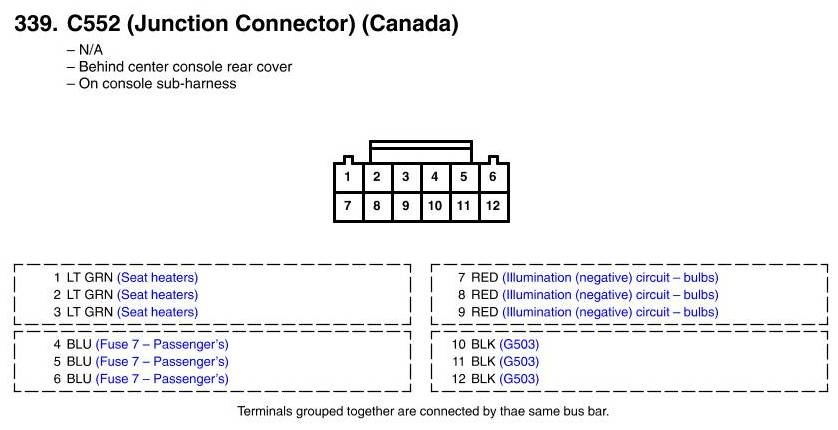

View 339 - C552 (Junction Connector) Connector View (Canada)
