Home >> Acura >> 2010 >> RL V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 323 - C513 (Junction Connector) Connector View

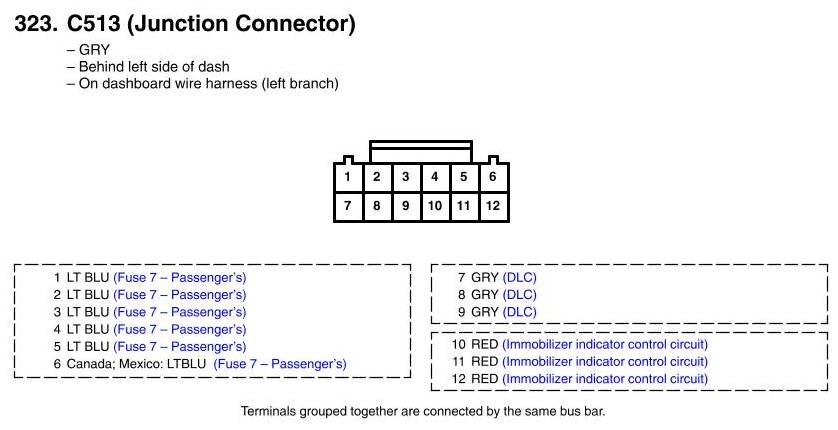

View 323 - C513 (Junction Connector) Connector View
