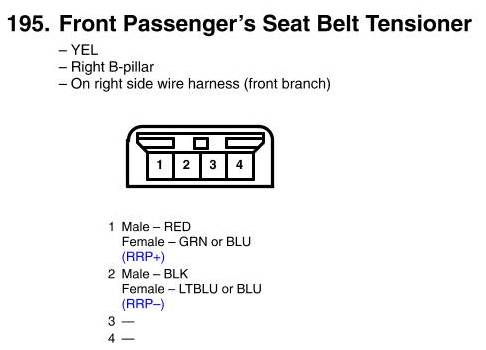

View 195 - Front Passenger's Seat Belt Tensioner Connector View
View 195 - Front Passenger's Seat Belt Tensioner Connector View
