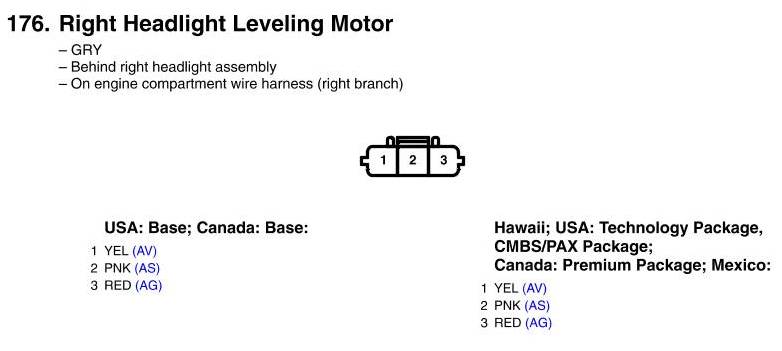

View 176 - Right Headlight Leveling Motor Connector View (USA: Base; Canada: Base)
View 176 - Right Headlight Leveling Motor Connector View (USA: Base; Canada: Base)
