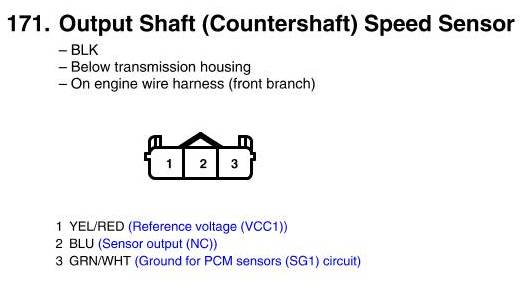

View 171 - Output Shaft (Countershaft) Speed Sensor Connector View
View 171 - Output Shaft (Countershaft) Speed Sensor Connector View
