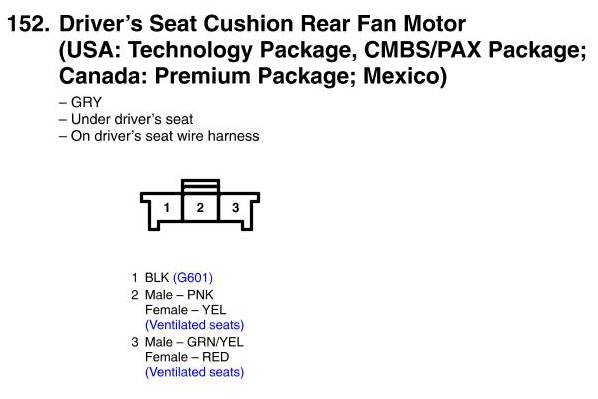

View 152 - Driver's Seat Cushion Rear Fan Motor Connector View (USA: Technology Package, CMBS/PAX Package)
