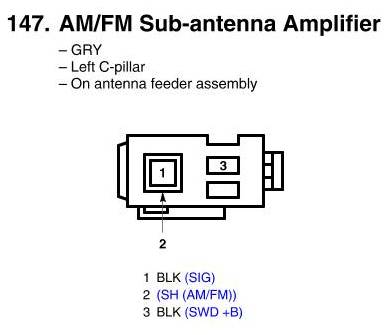

View 147 - AM/FM Sub-antenna Amplifier Connector View
View 147 - AM/FM Sub-antenna Amplifier Connector View
