Home >> Acura >> 2010 >> RL V6-3.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Fan >> Diagrams >> Driver's Seat Back Outer Fan Motor Connector View (USA: Technology Package, CMBS/PAX Package)

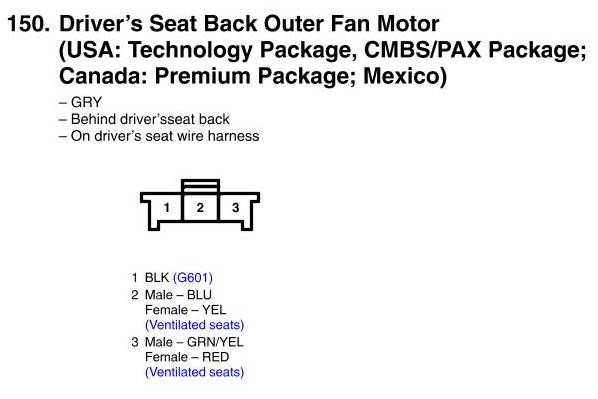

Driver's Seat Back Outer Fan Motor Connector View (USA: Technology Package, CMBS/PAX Package)
