Cellular Phone: Description and Operation




HandsFreeLink System Description

HandsFreeLink Control Unit Inputs and Outputs

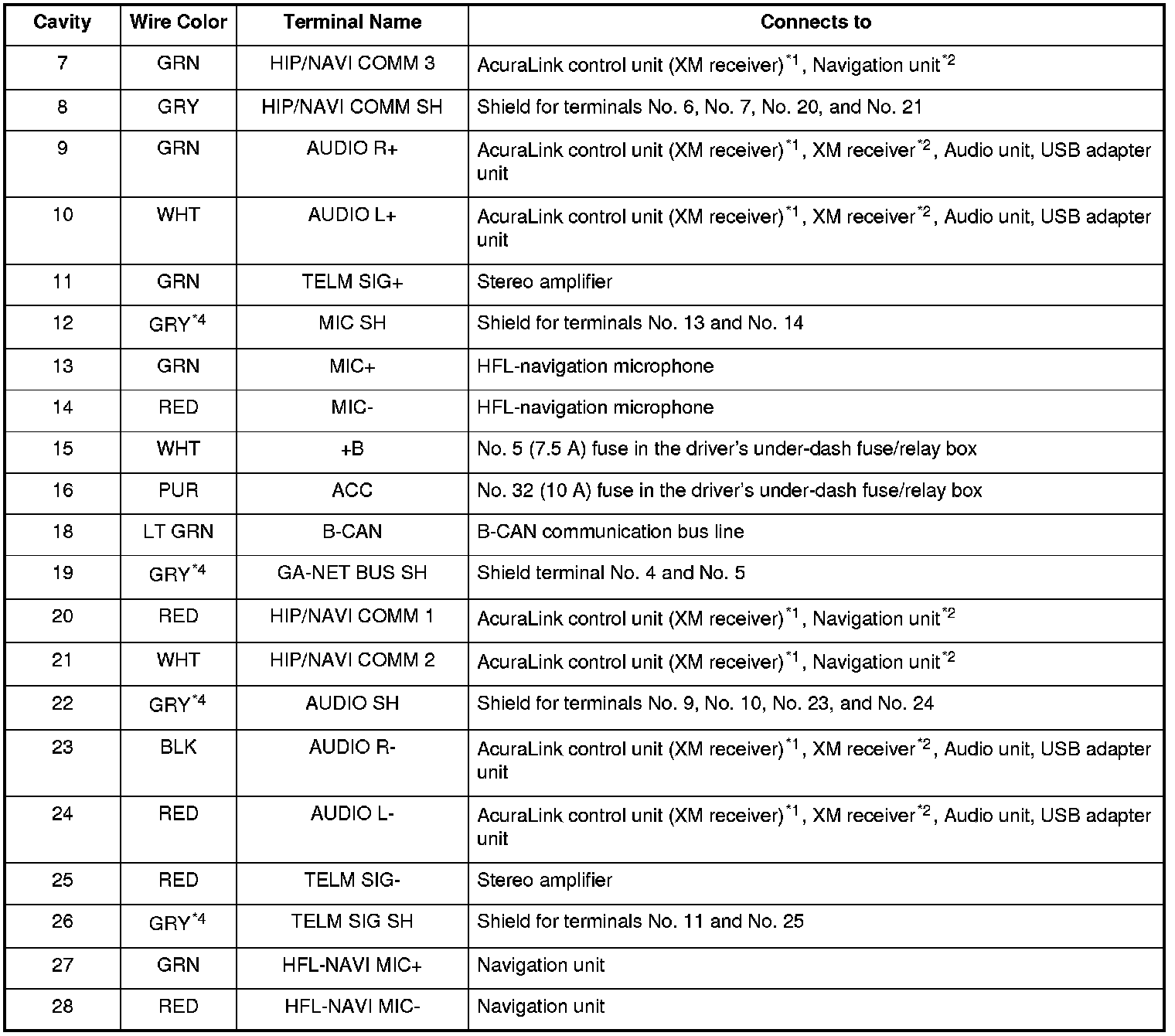

HandsFreeLink Control Unit 28P Connector









*1: With AcuraLink

*2: Without AcuraLink
