Trim Removal/Installation - Cargo Area

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program, 888-424-6857

NOTE:

Put on gloves to protect your hands.
Take care not to bend or scratch the trim and panels.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the cargo floor lid (A). A

Fig 1: Identifying Cargo Floor Lid
Courtesy of AMERICAN HONDA MOTOR CO., INC.

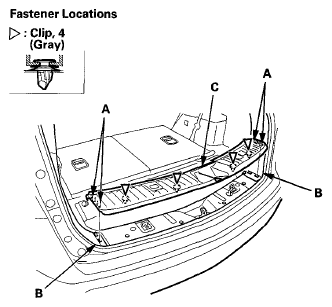

Detach the hooks (A) from the rear side trim panel (B), and pull the rear trim panel (C) up by hand to detach the clips, then remove it.

Fig 2: Identifying Rear Side Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Turn the lock knobs (A) 90 °, then remove the tool set holder (B).

Fig 3: Turning Lock Knobs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

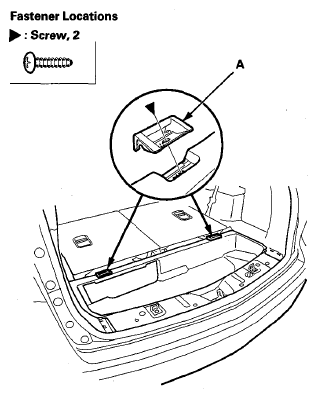

Remove the screws, then remove the cargo lid hinges (A).

Fig 4: Identifying Cargo Lid Hinges And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the cargo rear trim panel (A).

Fig 5: Identifying Cargo Rear Trim Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the clips and the hooks into place securely.
