TPMS Control Unit Replacement

NOTE: Make sure the TPMS control unit mounting bracket is not bent or twisted as this may affect its communication with the tire pressure sensors

Turn the ignition switch to LOCK (0)
Remove the flange bolt (A), then remove the TPMS control unit (B) with the bracket (C)
NOTE: The TPMS control unit is located over the accelerator pedal module

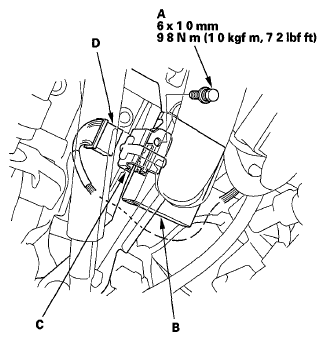

Fig 1: Flange Bolt, TPMS Control Unit And Bracket With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Disconnect the TPMS control unit connector (D)
Remove the TPMS control unit (A) from the bracket (B)
NOTE: While separating the TPMS control unit from the bracket, release the hook (C) on the TPMS control unit using a flat-tipped screwdriver (D), and push it up to remove the bracket

Fig 2: Identifying TPMS Control Unit, Bracket And Hook
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the TPMS control unit in the reverse order of removal
NOTE: Make sure the TPMS control unit is properly installed You will hear a click when the TPMS control unit is securely mounted on the bracket
Connect the HDS, and memorize the tire pressure sensor IDs (see MEMORIZING THE TIRE PRESSURE SENSOR ID ) Do not memorize the IDs automatically
