Knuckle/Hub Bearing Unit Replacement
>>
Exploded View
Exploded View

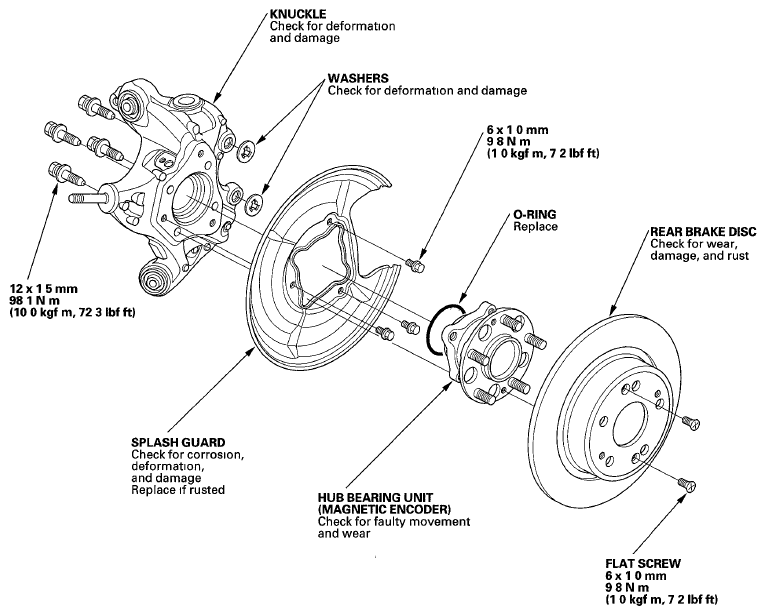

Fig 1: Exploded View Of Knuckle/Hub/Wheel Bearing With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Special Tools Required
Ball joint remover, 32 mm 07MAC-SL0A102
Courtesy of AMERICAN HONDA MOTOR CO., INC.
