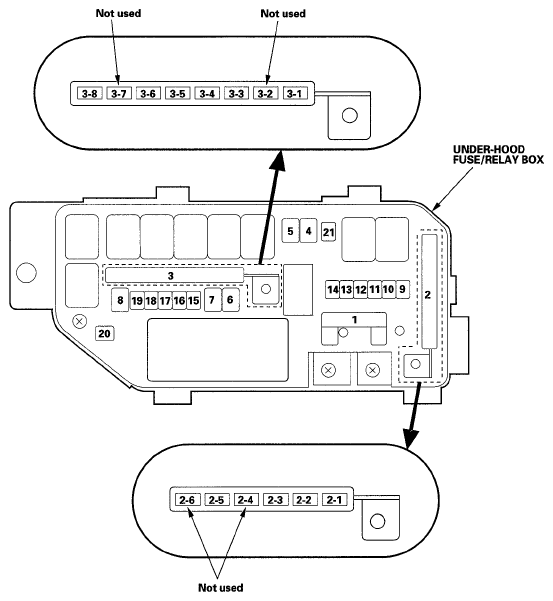

| 1 |
MAIN |
100 A |
Battery, Power supply |
| AS F/B |
40 A |
No 8, No 9, No 10, No 11, No 12 and No 13 fuse in the passenger's under-dash fuse/relay box |
| 2 |
2-1 |
EPS |
70 A |
EPS control unit |
| 2-2 |
AS F/B OP |
40 A |
No 14, No 15, No 16, No 18 and No 19 fuse in the passenger's under-dash fuse/relay box |
| 2-3 |
VSA FSR |
30 A |
VSA modulator-control unit (FSR) |
| 2-4 |
- |
40 A |
Not used |
| 2-5 |
VSA MTR |
30 A |
VSA modulator-control unit (MTR) |
| 2-6 |
- |
30 A |
Not used |
| 3 |
3-1 |
IG MAIN |
50 A |
Ignition switch |
| 3-2 |
- |
40 A |
Not used |
| 3-3 |
AS LT MAIN |
30 A |
No 1, No 2, No 3, No 4 and No 5 fuse in the passenger's under-dash fuse/relay box |
| 3-4 |
DR F/B |
60 A |
No 19, No 20, No 21, No 22, No 23, No 24 and No 25 fuse in the driver's under-dash fuse/relay box |
| 3-5 |
DR LT MAIN |
30 A |
No 26, No 27, No 28, No 29 and No 30 fuse in the driver's under-dash fuse/relay box |
| 3-6 |
MAIN FAN MTR |
30 A |
ECM/PCM, Radiator fan, Radiator fan motor |
| 3-7 |
- |
30 A |
Not used |
| 3-8 |
WIP MTR |
30 A |
Driver's MICU, Wiper motor relay circuit, Wiper motor intermittent relay circuit and Wiper motor HI/LOW relay circuit in the relay circuit board, Wiper motor |
| 4 |
40 A |
Condensers, Rear window defogger relay, Rear window defogger |
| 5 |
20 A |
A/C condenser fan relay circuit in the relay circuit board, A/C condenser fan motor |
| 6 |
- |
Not used |
| 7 |
- |
Not used |
| 8 |
40 A |
Blower motor relay, Blower motor |
| 9 |
15A |
Driver's MICU, Hazard warning switch |
| 10 |
10A |
Driver's under-dash fuse/relay box, Horn relay, Horns |
| 11 |
- |
Not used |
| 12 |
15A |
Brake pedal position switch |
| 13 |
15A |
Ignition coil relay, Ignition coils |
| 14 |
15A |
A/F sensor, ECM/PCM (SUB RLY), PGM-FI subrelay |
| 15 |
10A |
AcuraLink control unit and AcuraLink control unit (XM receiver), Audio/Navigation switch panel, Audio unit, Audio-HVAC display unit, Data link connector (DLC), Driver's door courtesy light, Driver's MICU, Front passenger's door courtesy light, Gauge control module, HandsFreeLink control unit, HFL/navigation microphone, Immobilizer-keyless control unit, Navigation display unit, Navigation unit, Passenger's MICU, Power window master switch, Power seat control unit |
| 16 |
75A |
Ceiling light, Ignition key light, Individual map light, Left rear door courtesy light, Right rear door courtesy light, Trunk light, Vanity mirror lights |
| 17 |
15A |
CKP sensor, CMP sensor B, ECM/PCM (ETCSRLY), ECM/PCM (IGP), ECM/PCM (IMOFPR), ECM/PCM (MRLY), ETCS control relay, Injectors, MAF sensor, PGM-FI main relay 1 (Fl MAIN), PGM-FI main relay 2 (FUEL PUMP) |
| 18 |
15A |
ECM/PCM (VBETCS), ETCS control relay |
| 19 |
- |
Not used |
| 20 |
75A |
A/C compressor clutch relay, A/C compressor clutch |
| 21 |
75A |
A/C condenser fan relay circuit, ECM/PCM |
