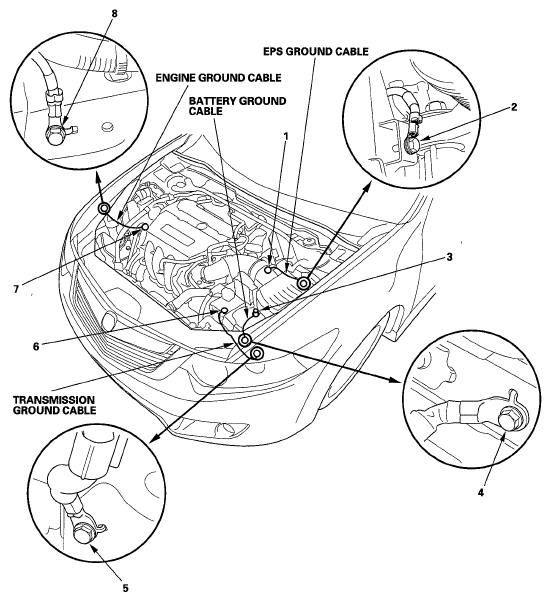

Transmission Ground Cable
TRANSMISSION GROUND CABLE - CONNECTOR TO HARNESS INDEX
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| 12 |
6 |
|
Left side of engine compartment |
Transmission housing |
|
| G3 |
5 |
|
Left side of engine compartment |
Body ground, via transmission ground cable |
|
Courtesy of AMERICAN HONDA MOTOR CO., INC.
