Right Rear Door Courtesy Wire Harness

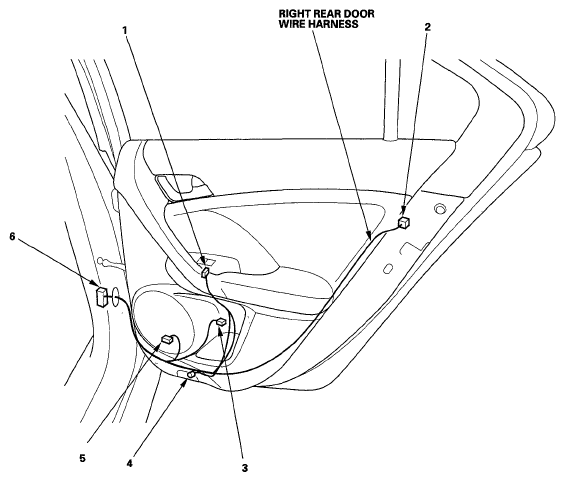

RIGHT REAR DOOR COURTESY WIRE HARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Right rear door courtesy light | 4 | 2 | Right rear door | ||
| Right rear door lock actuator/knob switch | 2 | 10 | Right rear door | ||
| Right rear power window motor | 3 | 2 | Right rear door | ||
| Right rear power window switch | 1 | 14 | Right rear door | ||
| Right rear speaker | 5 | 2 | Right rear door | ||
| C781 | 6 | 18 | Right B-pillar | Right side wire harness (see RIGHT SIDE WIRE HARNESS ) |
