Left Engine Compartment Subharness

LEFT ENGINE COMPARTMENT SUBHARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
C202 3 18 Under right side of dash Right engine compartment wire harness (Dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )
C203 2 2 Under right side of dash Right engine compartment wire harness (Dashboard branch) (see RIGHT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )
C352 4 23 Under middle of dash Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )
C353 1 2 Under middle of dash Left engine compartment wire harness (Dashboard branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (DASHBOARD BRANCH) )

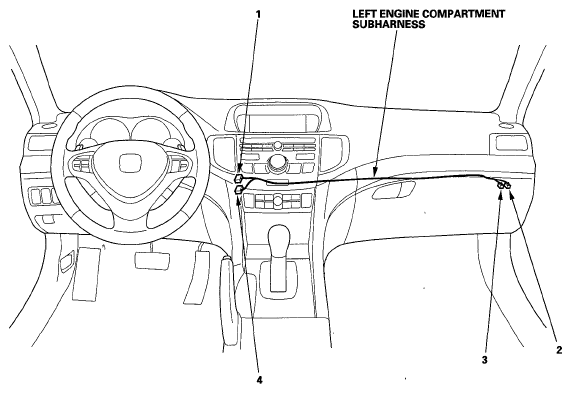

Fig 1: Identifying Left Engine Compartment Subharness Location
G05994821Courtesy of AMERICAN HONDA MOTOR CO., INC.
