Dashboard Wire Harness (View of steering column side)

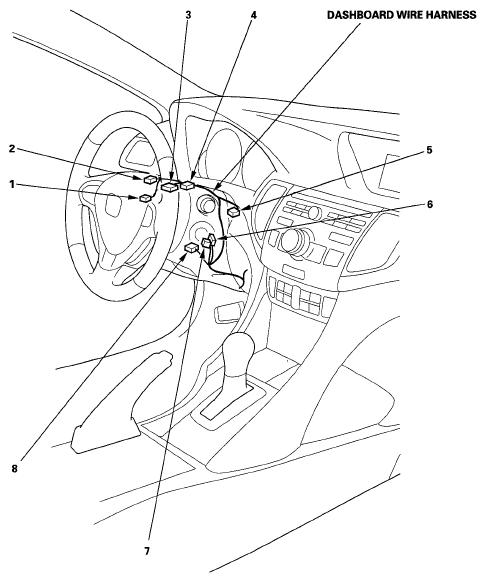

DASHBOARD WIRE HARNESS (VIEW OF STEERING COLUMN SIDE) - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Cable reel connector A | 3 | 20 | In steering column | Cable reel subharness via cable reel | |
| Combination light switch | 2 | 12 | In steering column | ||
| Driver's airbag inflator | 4 | 4 | In steering column | ||
| Ignition key switch | 7 | 6 | In steering column | ||
| Ignition switch | 8 | 5 | In steering column | ||
| Immobilizer-keyless control unit | 6 | 7 | In steering column | ||
| Steering angle sensor | 1 | 5 | In steering column | ||
| Wiper/washer switch | 5 | 8 | In steering column |
