Cable Reel Subharness

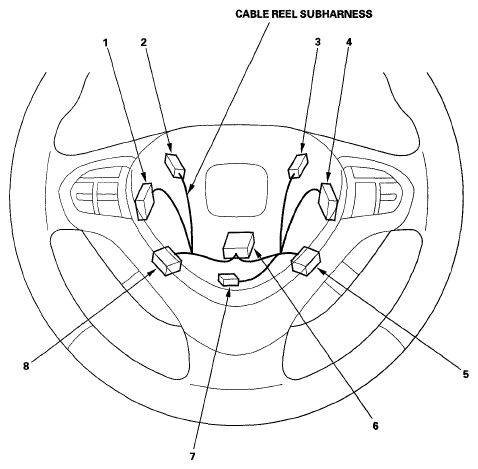

CABLE REEL SUBHARNESS - CONNECTOR TO HARNESS INDEX
| Connector or Terminal | Ref | Cavities | Location | Connects to | Notes |
|---|---|---|---|---|---|
| Audio remote switch | 1 | 12 | Steering wheel | ||
| Cable reel connector C | 6 | 20 | Steering wheel | ||
| Cruise control set/resume/cancel switch | 4 | 12 | Steering wheel | ||
| HFL/Voice control switch | 8 | 7 | Steering wheel | ||
| Horn switch | 7 | 2 | Steering wheel | ||
| Select/reset/information switch | 5 | 7 | Steering wheel | ||
| Paddle shifter+ (Upshift switch) | 3 | 4 | Steering wheel | A/T | |
| Paddle shifter- (Downshift switch) | 2 | 4 | Steering wheel | A/T |
