Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, retrieve the ODO value and the maintenance minder information from the gauge control module with the HDS (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE )
  1. Remove the driver's dashboard undercover (see DRIVER'S POCKET REMOVAL/INSTALLATION ), then remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER REMOVAL/INSTALLATION )
  2. Remove the two bolts from under the dashboard, then pull the gauge control module (A) out carefully

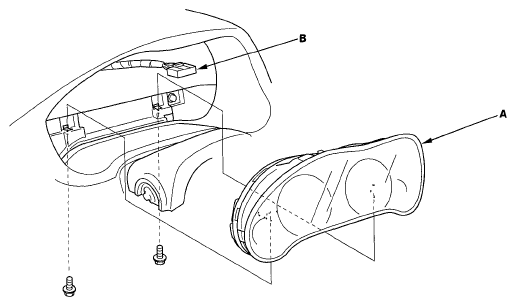

    Fig 1: Identifying 32P Connector And Gauge Control Module
    G05995101Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 32P connector (B) from the gauge control module
  4. Install the gauge control module in the reverse order of removal
  5. Write the ODO value and maintenance minder information to the new gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING THE MAINTENANCE MINDER DATA TO A NEW GAUGE CONTROL MODULE )
