Component Location Index

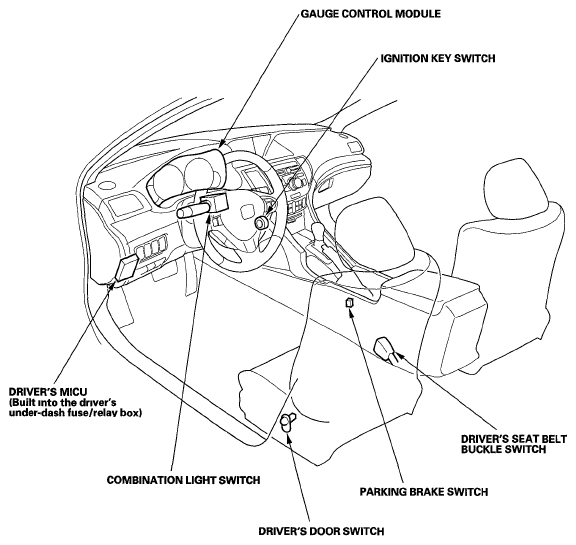

Fig 1: Identifying Reminder Systems Component Location (1 Of 2)
G05995104Courtesy of AMERICAN HONDA MOTOR CO., INC.

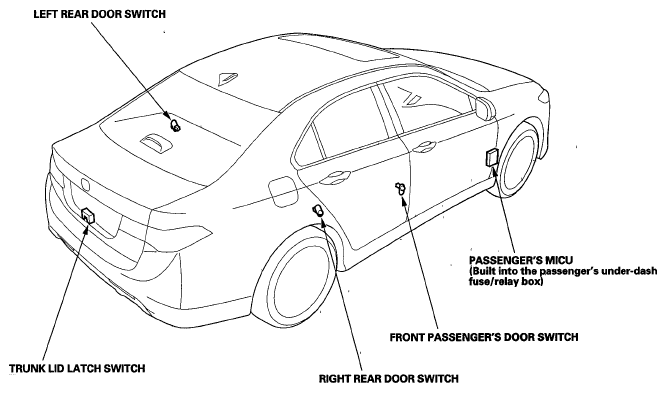

Fig 2: Identifying Reminder Systems Component Location (2 Of 2)
G05995105Courtesy of AMERICAN HONDA MOTOR CO., INC.
