TSX Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Electrical Compass (4-CYL)
>>
Circuit Diagram
Circuit Diagram

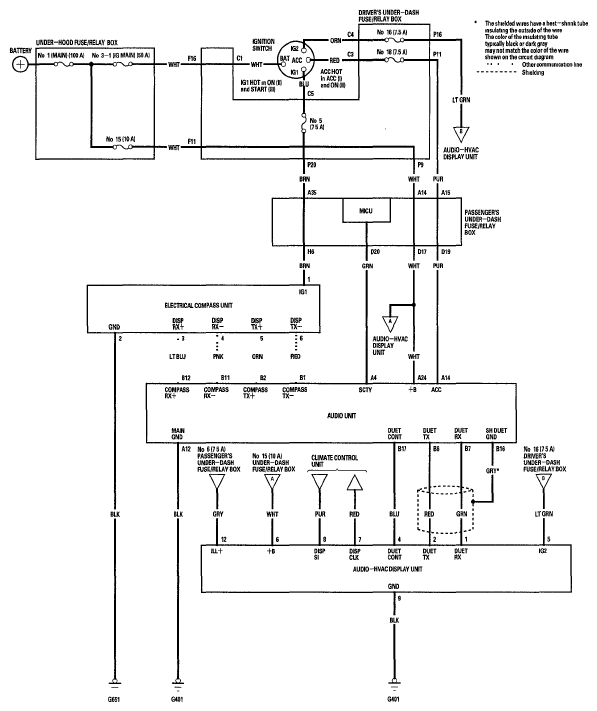

Fig 1: Electrical Compass Unit - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.
