EPS Subharness

EPS SUBHARNESS - CONNECTOR TO HARNESS INDEX

Connector or Terminal Ref Cavities Location Connects to Notes
Torque sensor 7 6 Left of engine compartment
C354 6 6 Left of engine compartment Left engine compartment wire harness (Engine compartment branch) (see LEFT ENGINE COMPARTMENT WIRE HARNESS (ENGINE COMPARTMENT BRANCH) )
T6 3 - Left of engine compartment Steering gear box
T7 2 - Right of engine compartment Steering gear box
T8 1 - Right of engine compartment Steering gear box

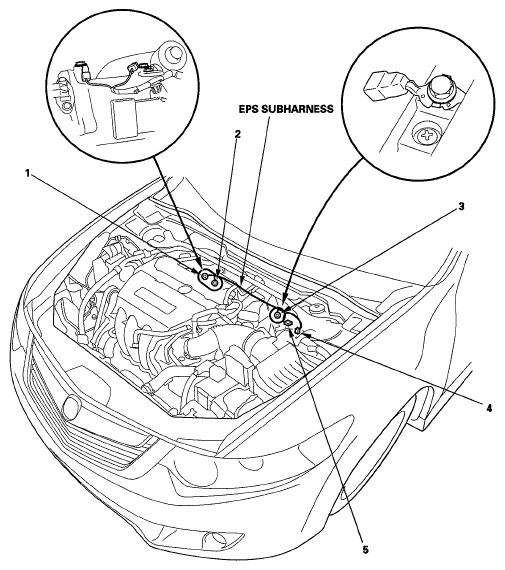

Fig 1: Identifying EPS Subharness Location
G05994818Courtesy of AMERICAN HONDA MOTOR CO., INC.
