Interior Light Switch Test/Replacement

NOTE: The interior light switch is built into the moonroof switch
  1. Remove the individual map lights (see FRONT INDIVIDUAL MAP LIGHT TEST/REPLACEMENT )
  2. Disconnect the moonroof switch 12P connector (A) and the map light 3P connector (B)

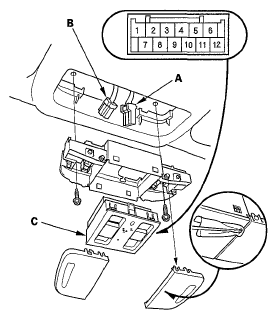

    Fig 1: Identifying Moonroof Switch Connector Terminals
    G05994997Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the moonroof switch (C) from the map light housing
  4. At the moonroof switch side, check for continuity between terminals No 9 and No 7
    • There should be continuity when the interior light switch is in the DOOR position
    • There should be no continuity when the interior light switch is in the OFF position
  5. If the continuity is not as specified, replace the moonroof switch assembly
  6. Install the parts in the reverse order of removal
