Component Location Index

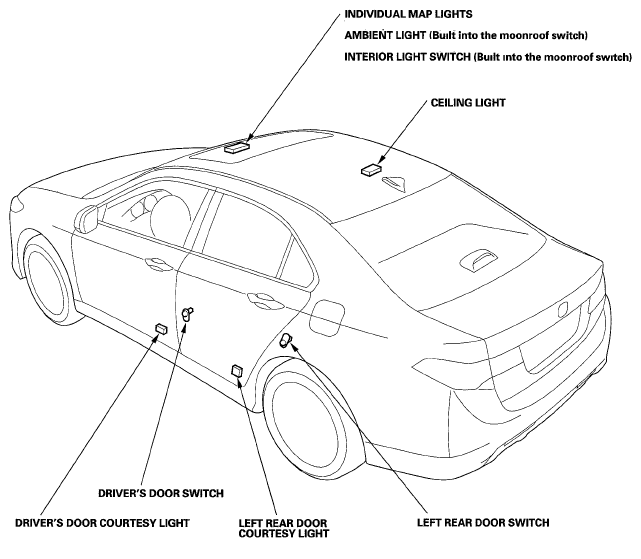

Fig 1: Identifying Interior Lights Component Location (1 Of 3)
G05994988Courtesy of AMERICAN HONDA MOTOR CO., INC.

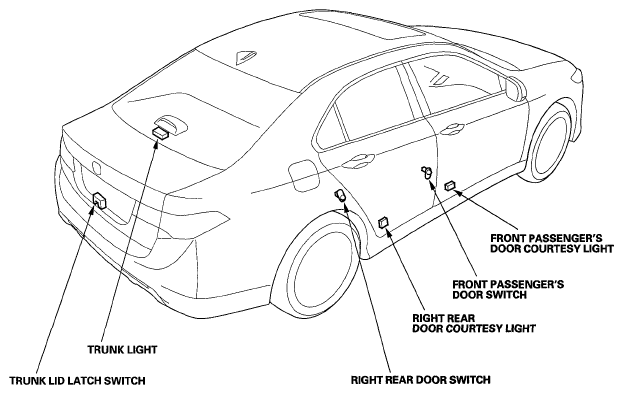

Fig 2: Identifying Interior Lights Component Location (2 Of 3)
G05994989Courtesy of AMERICAN HONDA MOTOR CO., INC.

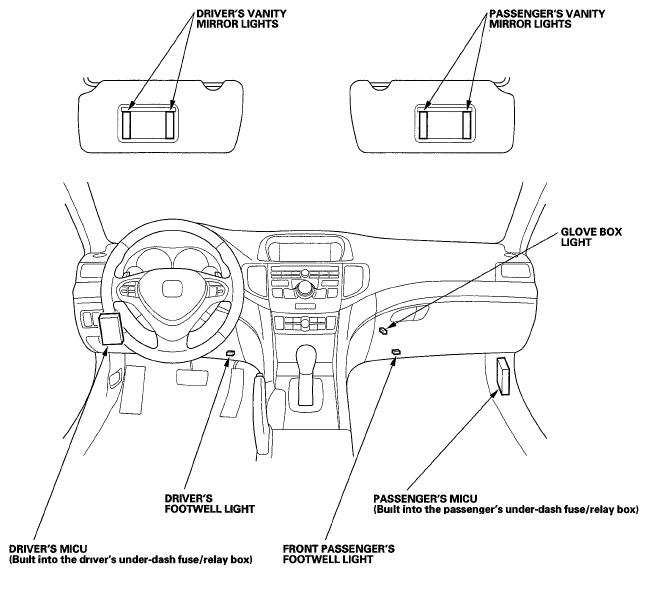

Fig 3: Identifying Interior Lights Component Location (3 Of 3)
G05994990Courtesy of AMERICAN HONDA MOTOR CO., INC.
