Circuit Diagram

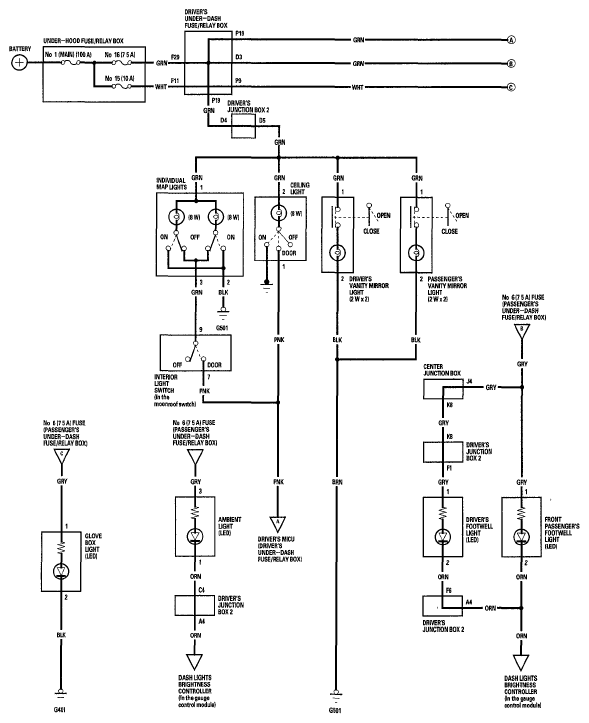

Fig 1: Interior Lights Circuit Diagram (1 Of 2)

G05994991

Courtesy of AMERICAN HONDA MOTOR CO., INC.

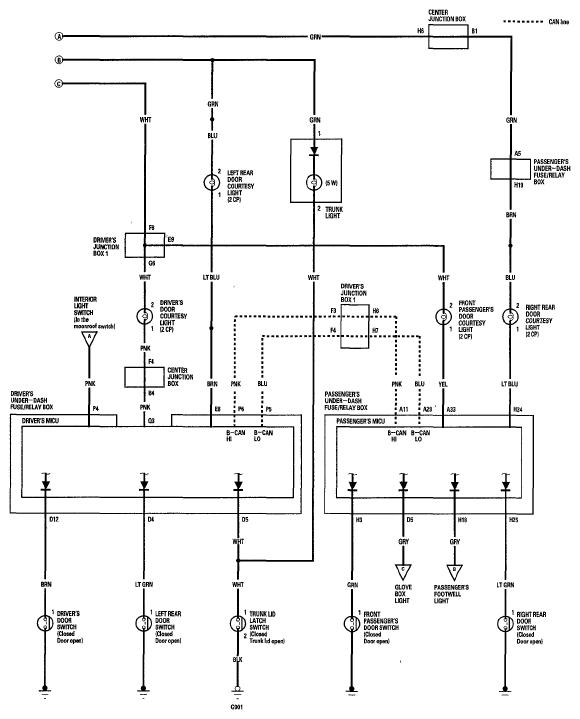

Fig 2: Interior Lights Circuit Diagram (2 Of 2)

G05994992

Courtesy of AMERICAN HONDA MOTOR CO., INC.
