Ambient Light Test/Replacement

NOTE: The ambient light is built into the moonroof switch
  1. Remove the individual map lights (see FRONT INDIVIDUAL MAP LIGHT TEST/REPLACEMENT )
  2. Disconnect the moonroof switch 12P connector (A) and the map light 3P connector (B)

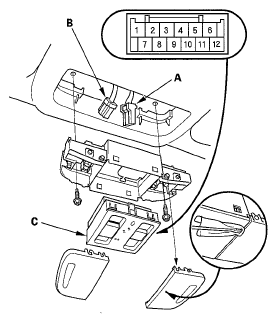

    Fig 1: Identifying Moonroof Switch Connector Terminals
    G05994998Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the moonroof switch (C) from the map light housing
  4. At the moonroof switch side, check the light by connecting battery power to the terminal No 3 and ground to the terminal No 1 The ambient light should come on If the light does not come on, replace the moonroof switch assembly
  5. Install the parts in the reverse order of removal
