Circuit Diagram

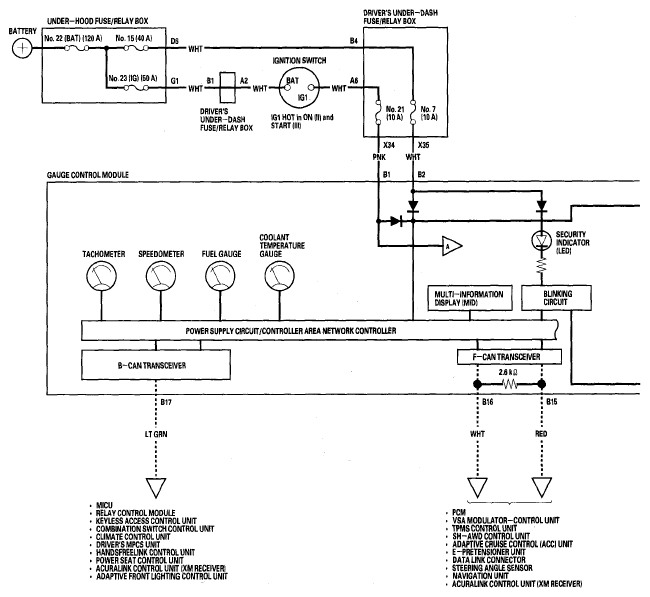

Fig 1: Gauges - Circuit Diagram (1 Of 7)

G06160858

Courtesy of AMERICAN HONDA MOTOR CO., INC.

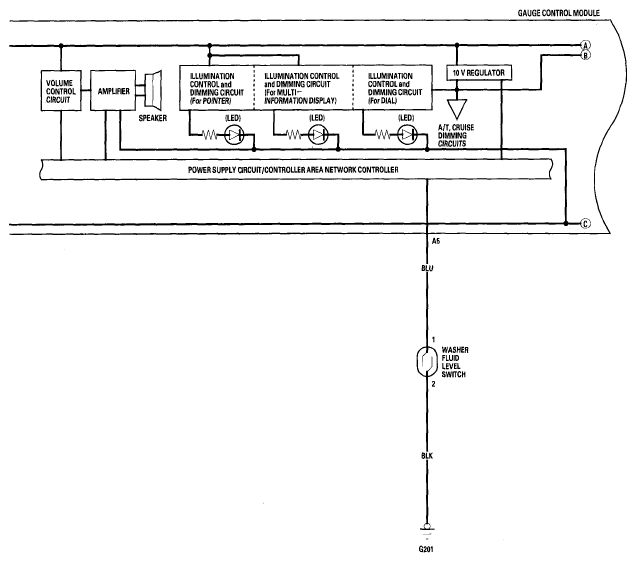

Fig 2: Gauges - Circuit Diagram (2 Of 7)

G06160859

Courtesy of AMERICAN HONDA MOTOR CO., INC.

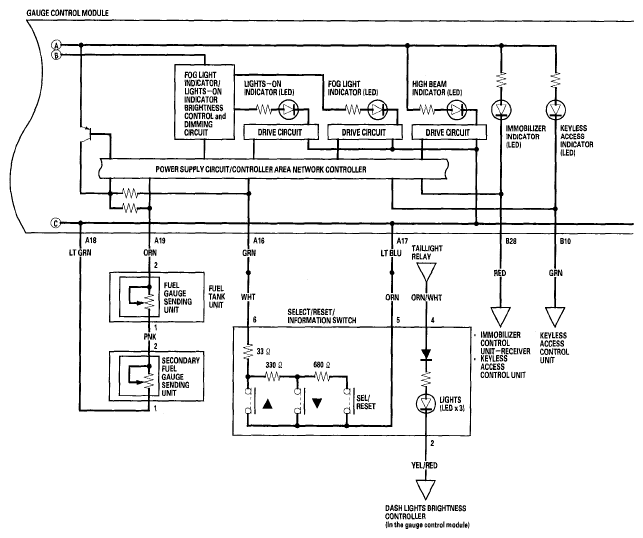

Fig 3: Gauges - Circuit Diagram (3 Of 7)

G06160860

Courtesy of AMERICAN HONDA MOTOR CO., INC.

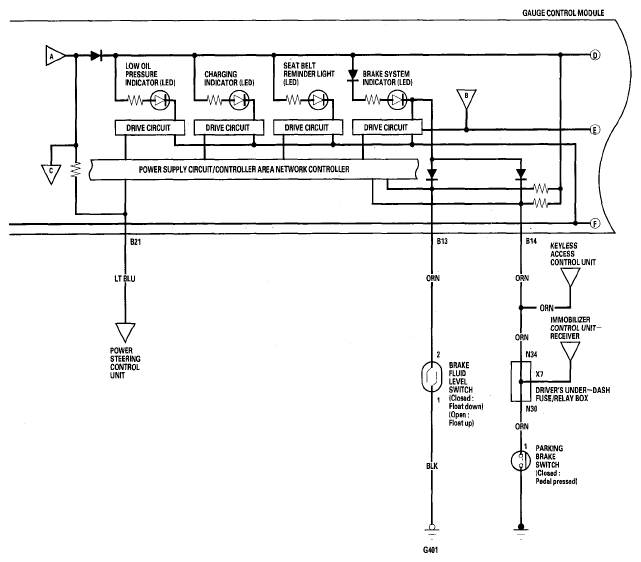

Fig 4: Gauges - Circuit Diagram (4 Of 7)

G06160861

Courtesy of AMERICAN HONDA MOTOR CO., INC.

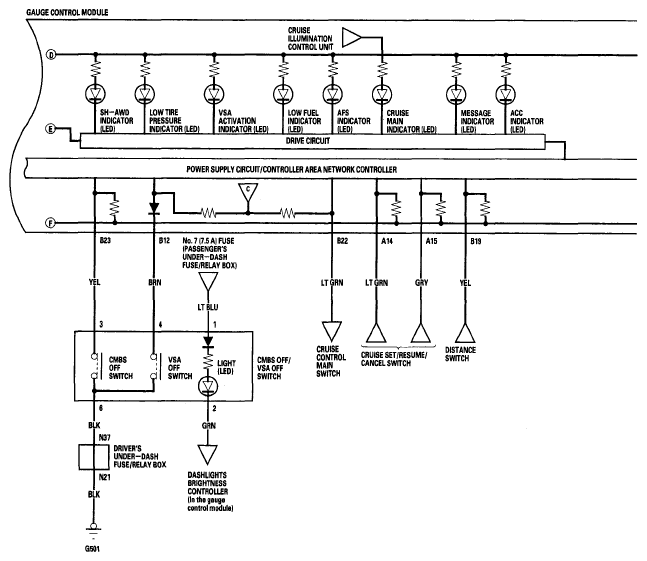

Fig 5: Gauges - Circuit Diagram (5 Of 7)

G06160862

Courtesy of AMERICAN HONDA MOTOR CO., INC.

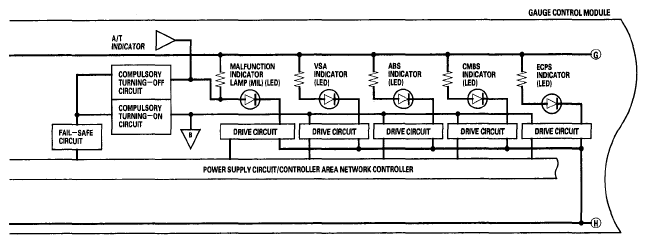

Fig 6: Gauges - Circuit Diagram (6 Of 7)

G06160863

Courtesy of AMERICAN HONDA MOTOR CO., INC.

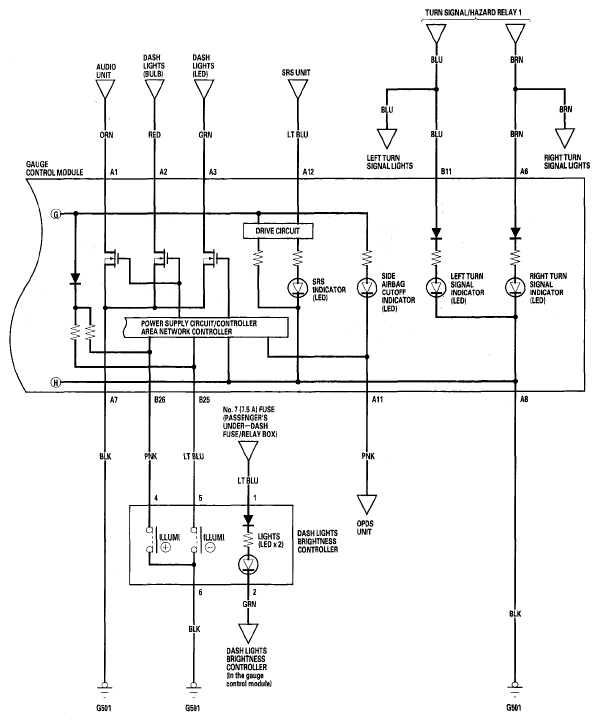

Fig 7: Gauges - Circuit Diagram (7 Of 7)

G06160864

Courtesy of AMERICAN HONDA MOTOR CO., INC.
