Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Specifications >> Mechanical Specifications

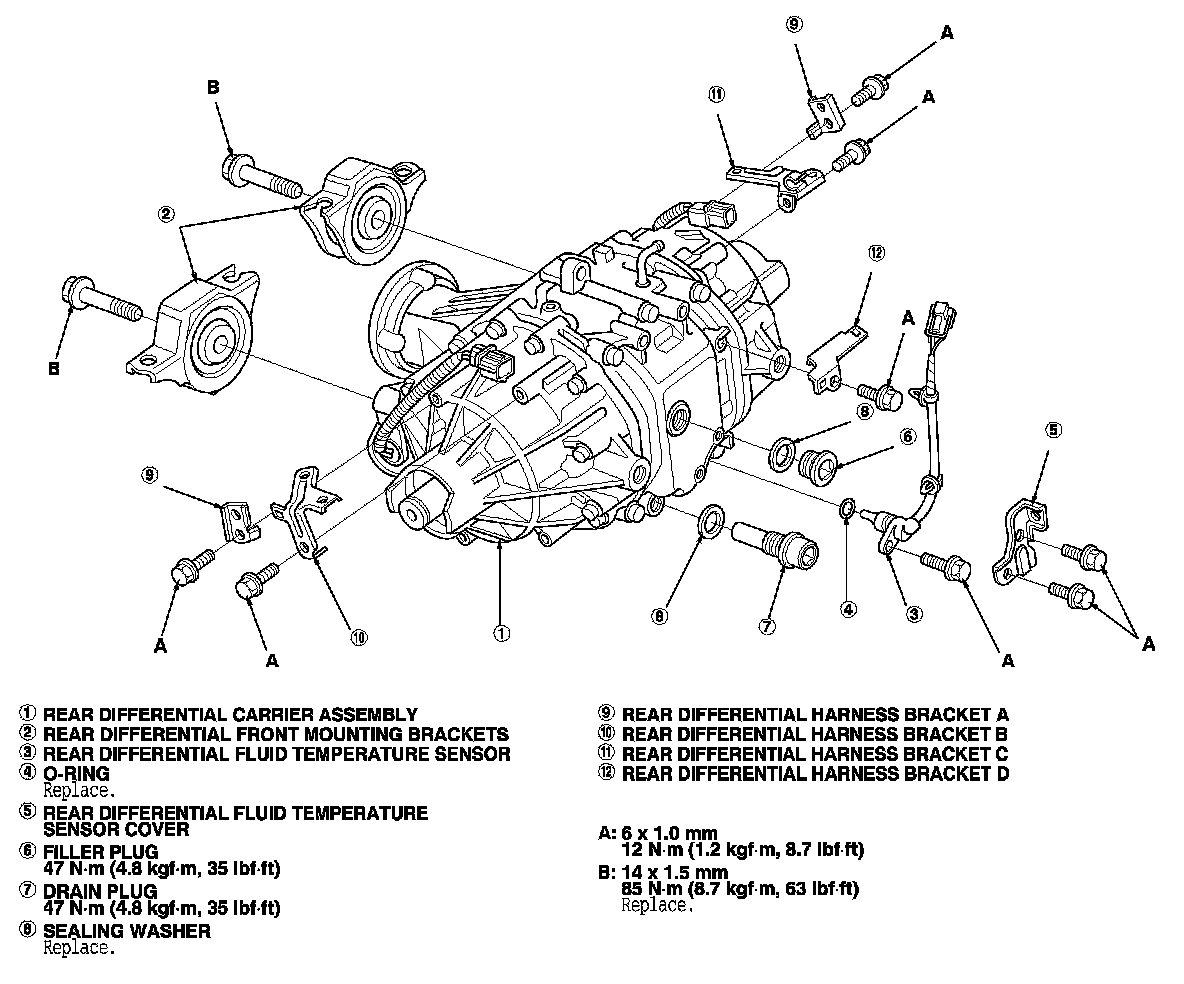

Mechanical Specifications



Rear differential






For information regarding Differential Overhaul Specifications, please refer to Service and Repair, Overhaul. Overhaul
