Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Locations

Suspension: Locations




Front and Rear Suspension Component Location Index

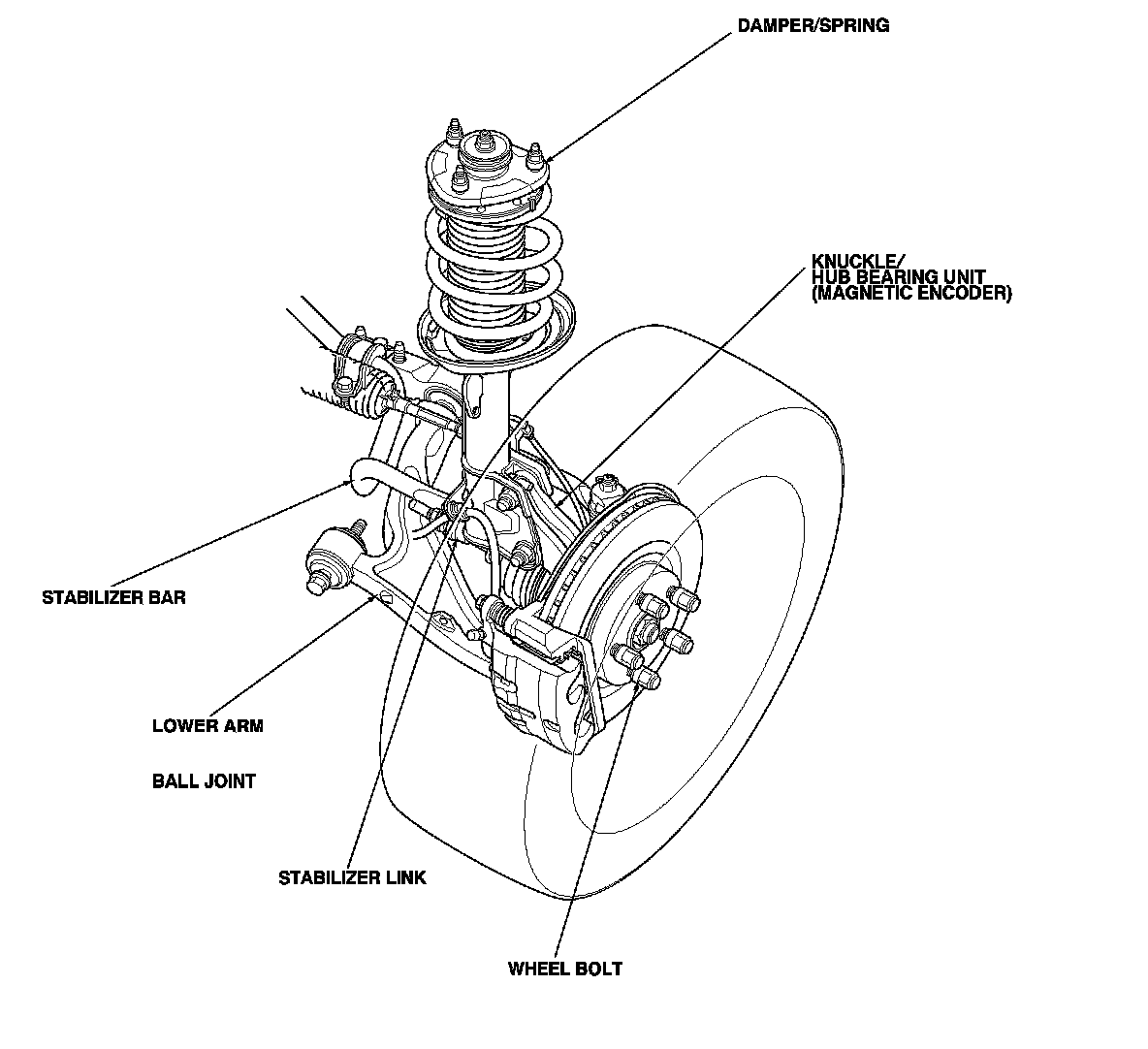

Front Suspension

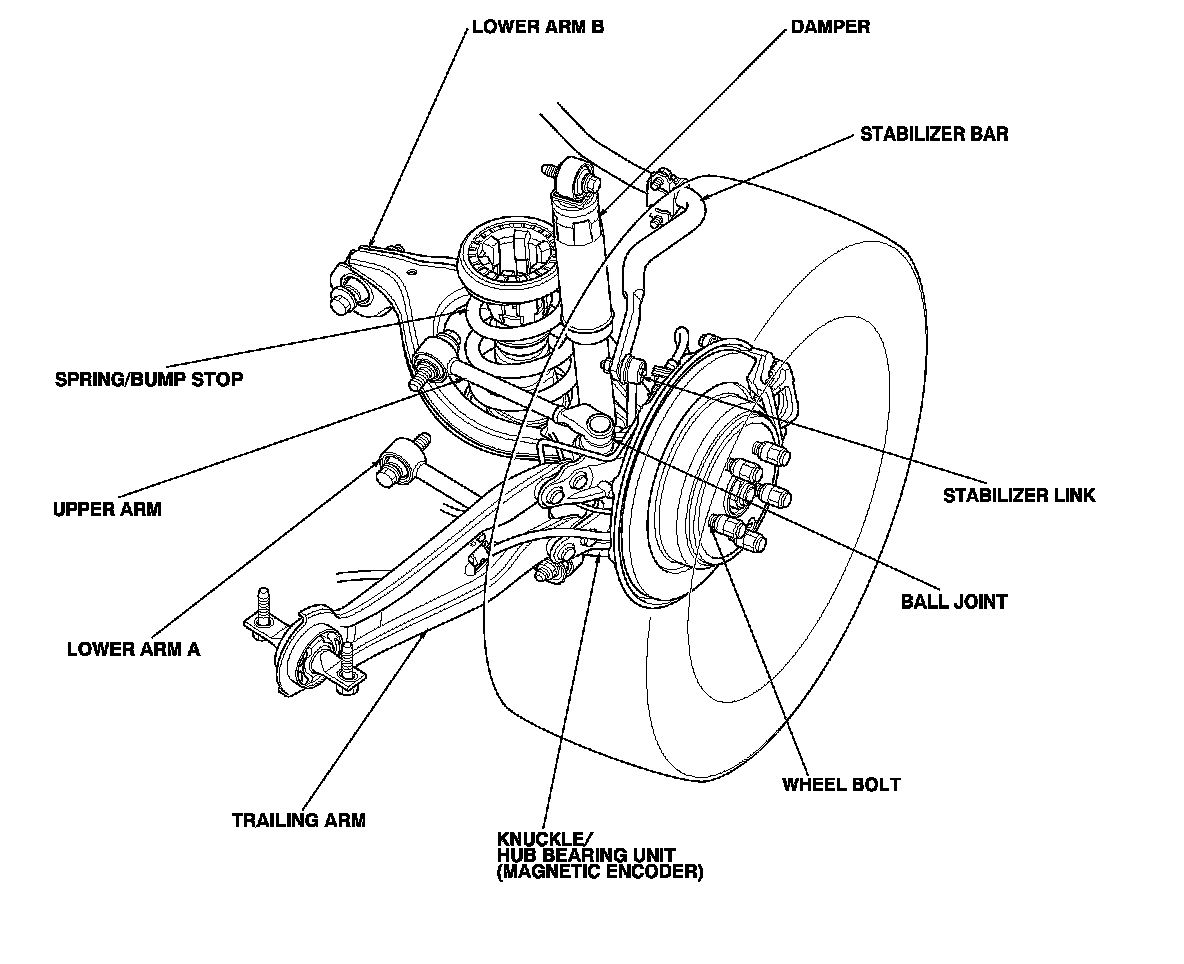

Rear Suspension
