Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Lighting and Horns >> Hazard Flasher Relay >> Locations

Hazard Flasher Relay: Locations

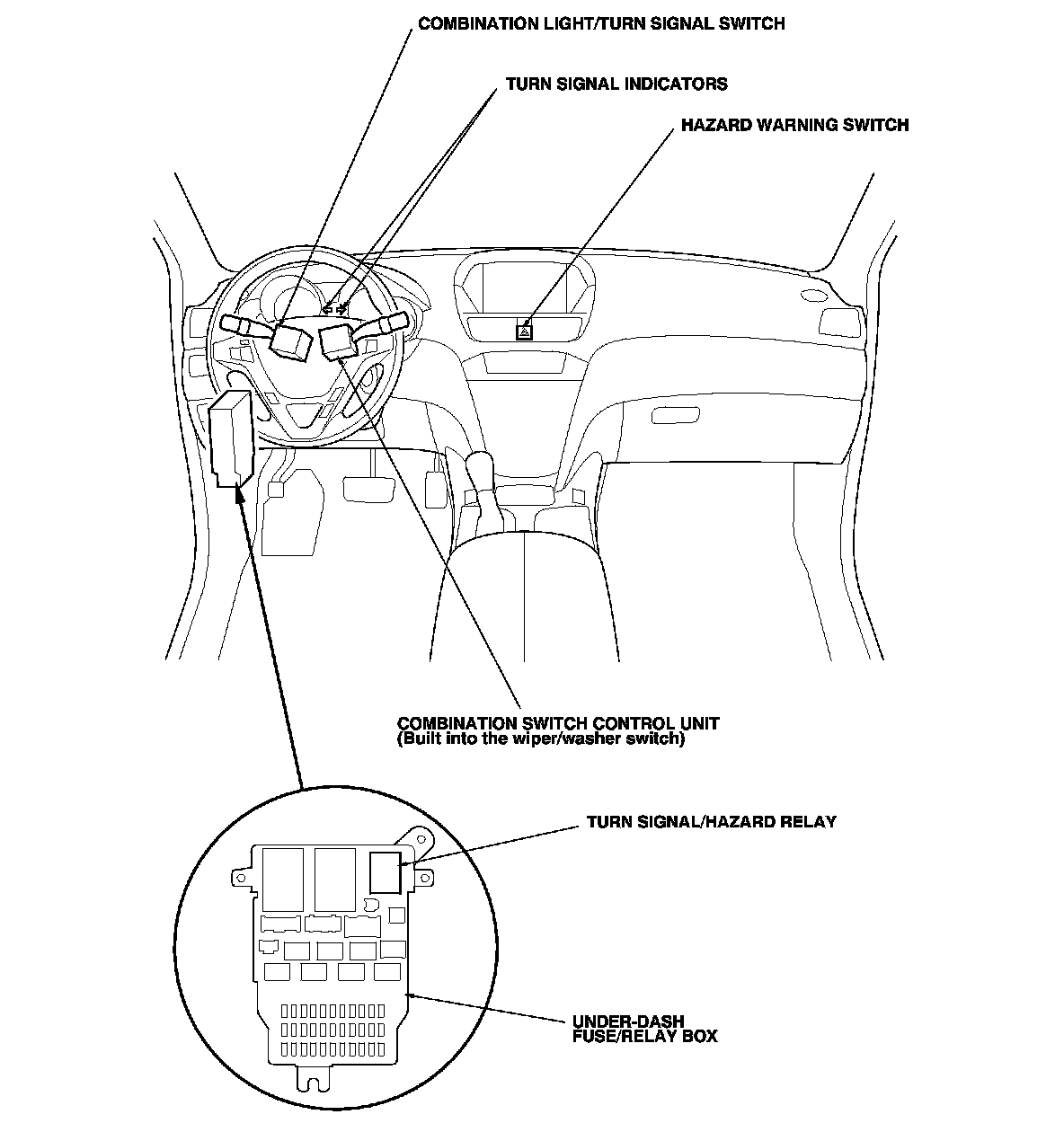

Turn Signal/Hazard Warning Lights Component Location Index
