Canister Purge Control Valve: Service and Repair

EVAP Canister Purge Valve Replacement

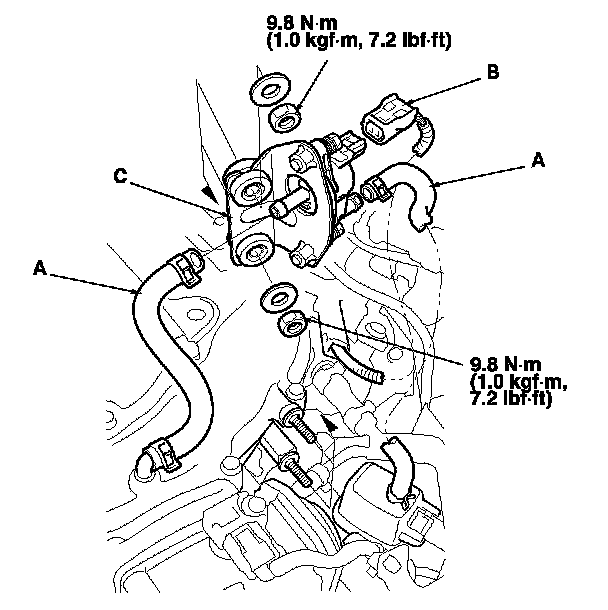

1. Disconnect the hoses (A) and EVAP canister purge valve connector (B).

2. Remove the EVAP canister purge valve and the bracket (C).






3. Remove the EVAP canister purge valve (A) from the bracket (B).

4. Install the parts in the reverse order of removal.
