Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Right Engine Compartment (Dash To Rear Of Engine), Right Front Damper Sub-harness Connector and Harness Locations

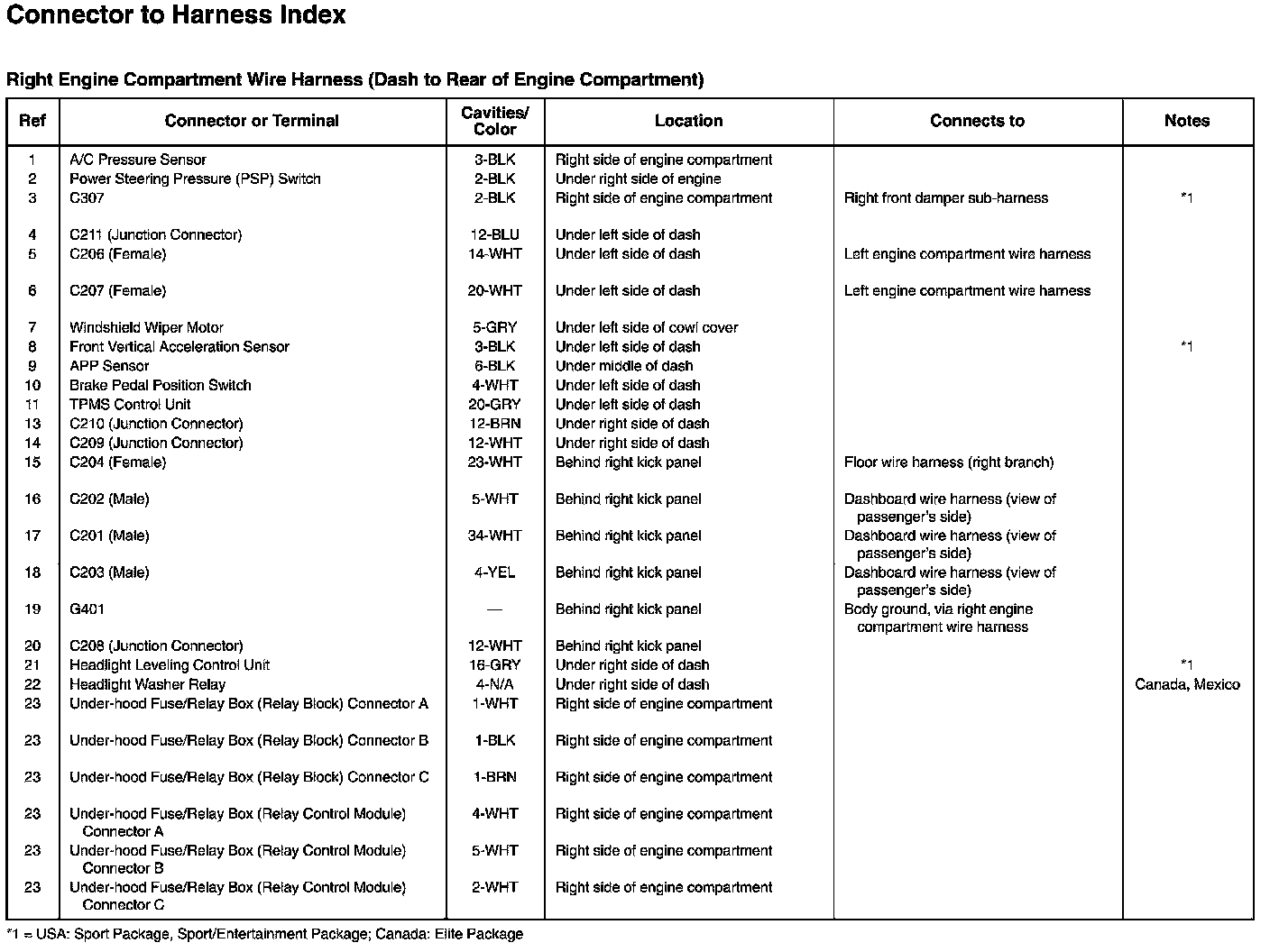

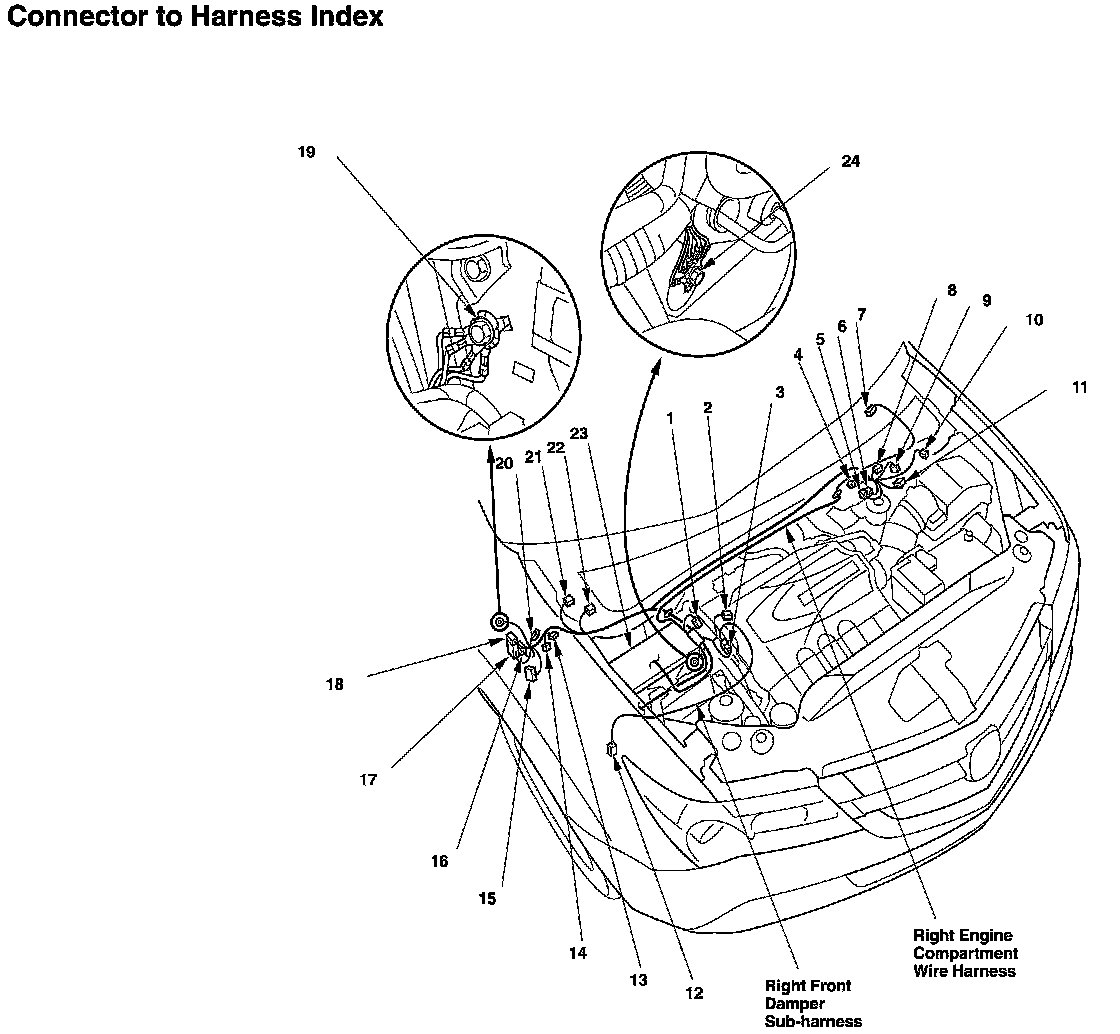

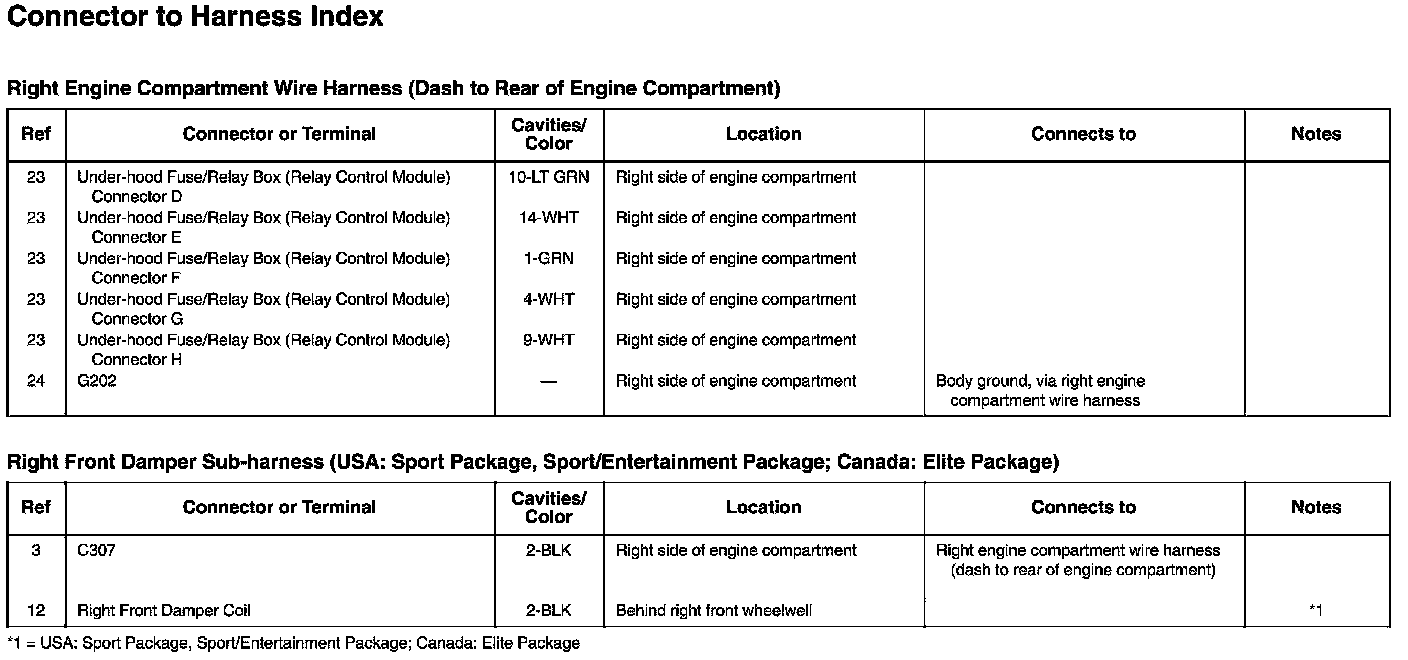

Right Engine Compartment (Dash To Rear Of Engine), Right Front Damper Sub-harness Connector and Harness Locations
