Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Left Engine Compartment Wire Harness And Left Front Damper Sub-Harness (Sport) Connector And Harness Locations

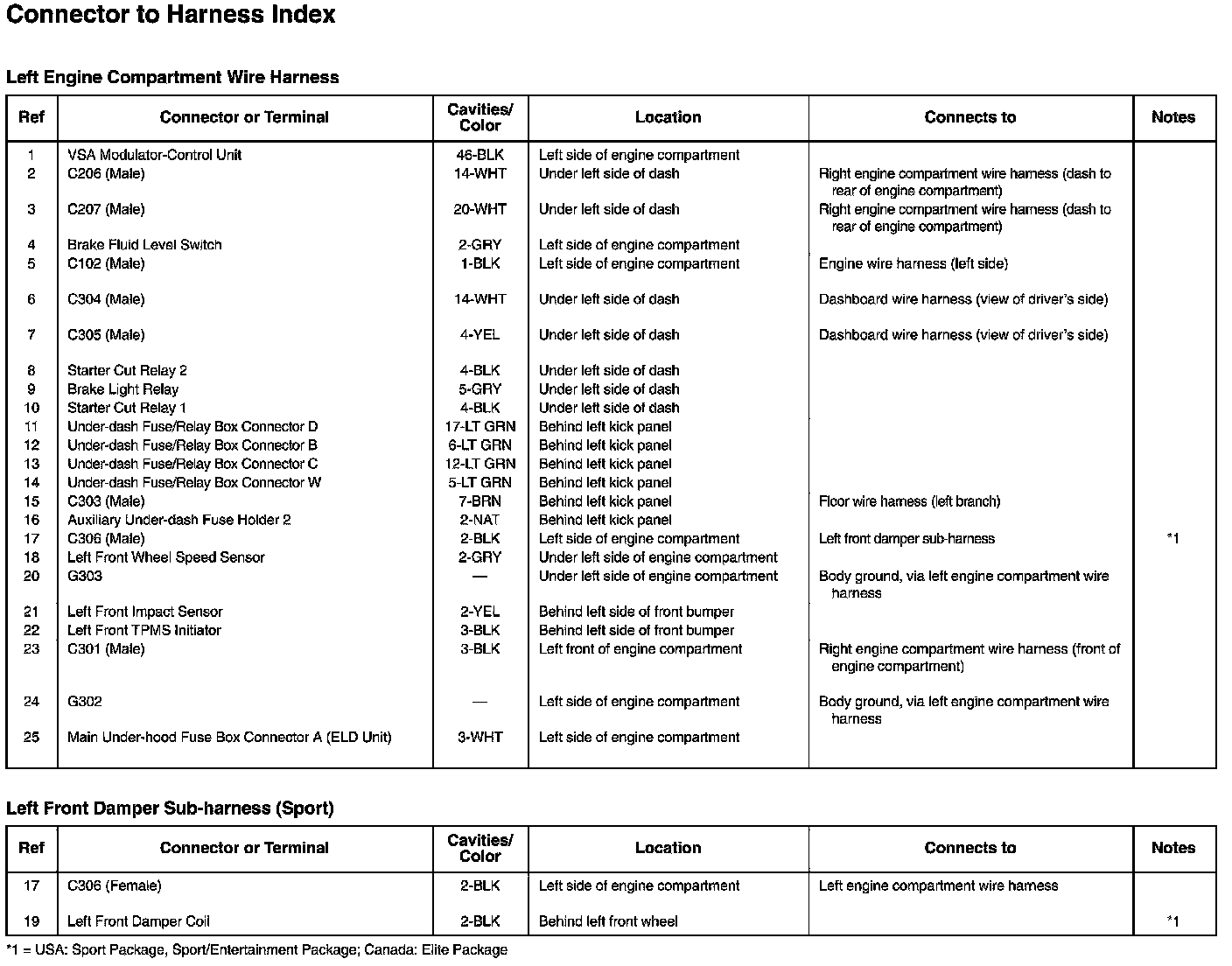

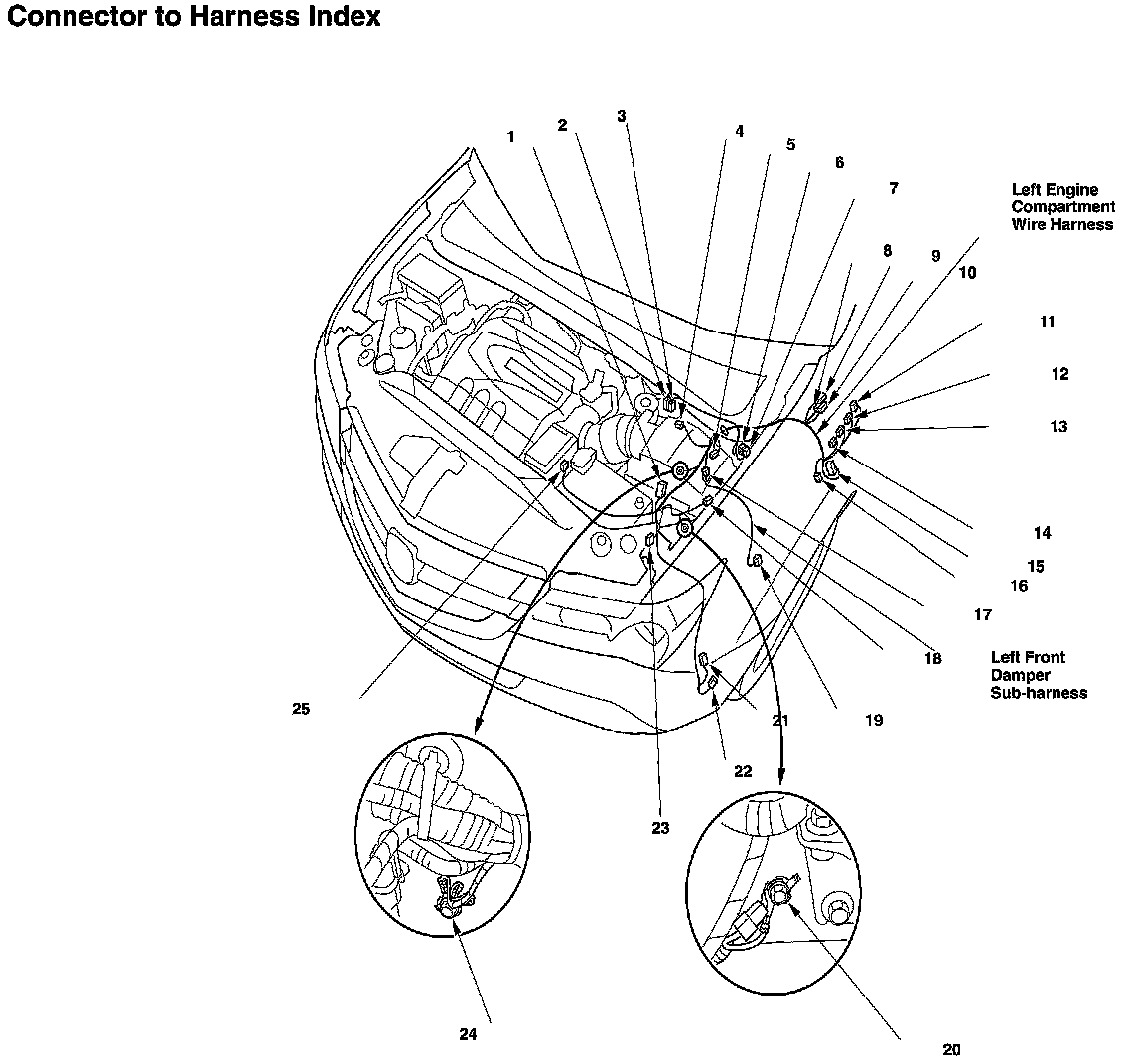

Left Engine Compartment Wire Harness And Left Front Damper Sub-Harness (Sport) Connector And Harness Locations
