Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Front Passenger's Seat, ODS Unit, Front Passenger's Seat Recline Motor Harness Connector and Harness Locations

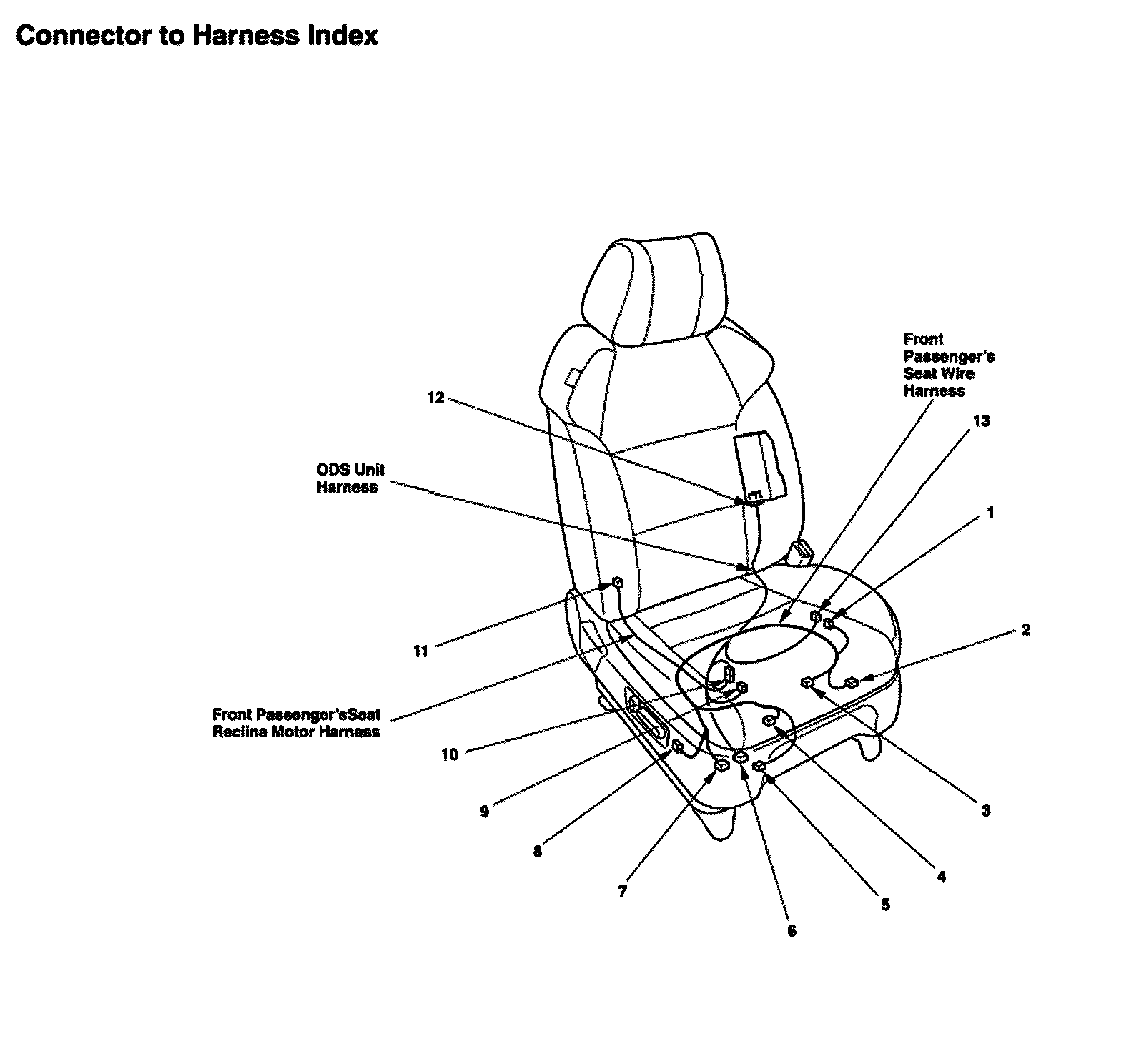

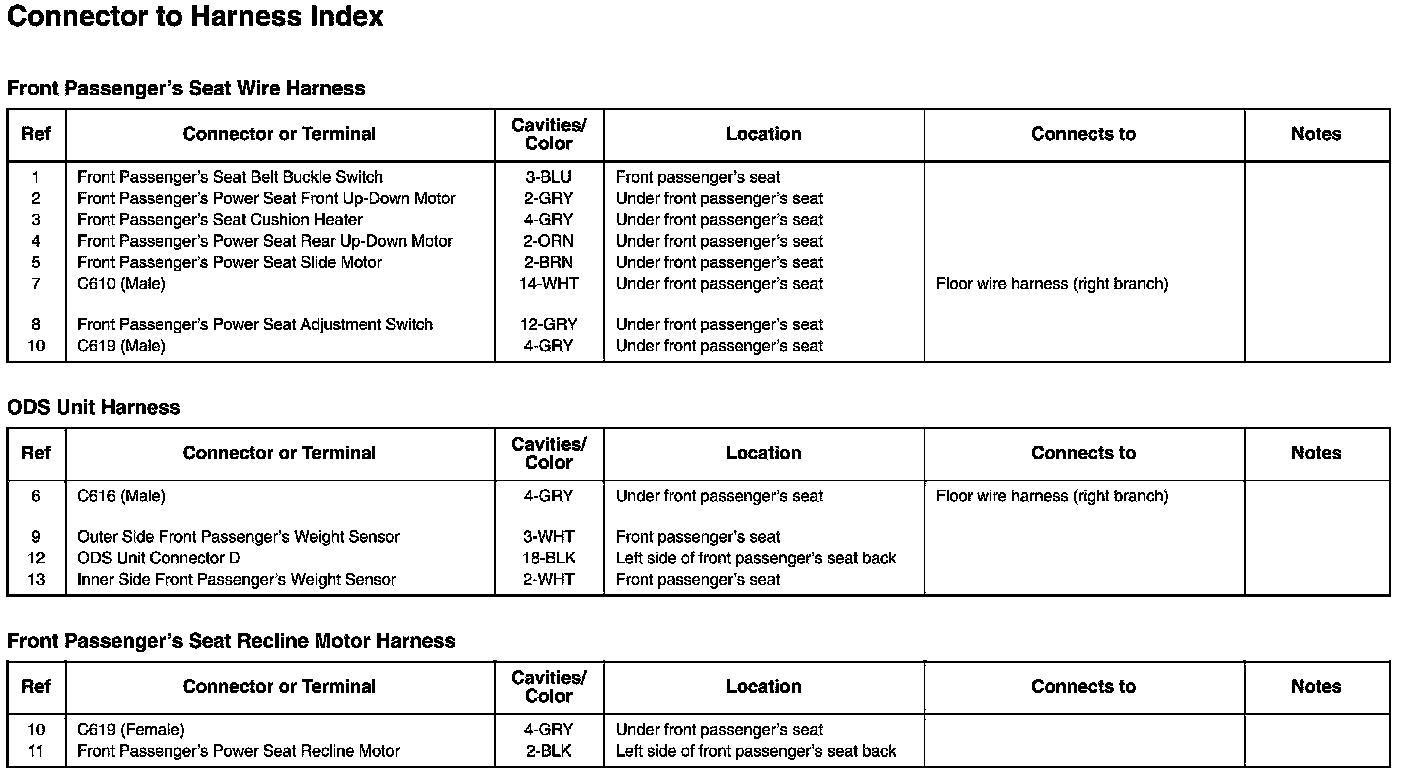

Front Passenger's Seat, ODS Unit, Front Passenger's Seat Recline Motor Harness Connector and Harness Locations
