Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Engine Wire Harness (Left Side) And Shift Control Solenoid Wire Harness Connector And Harness Locations

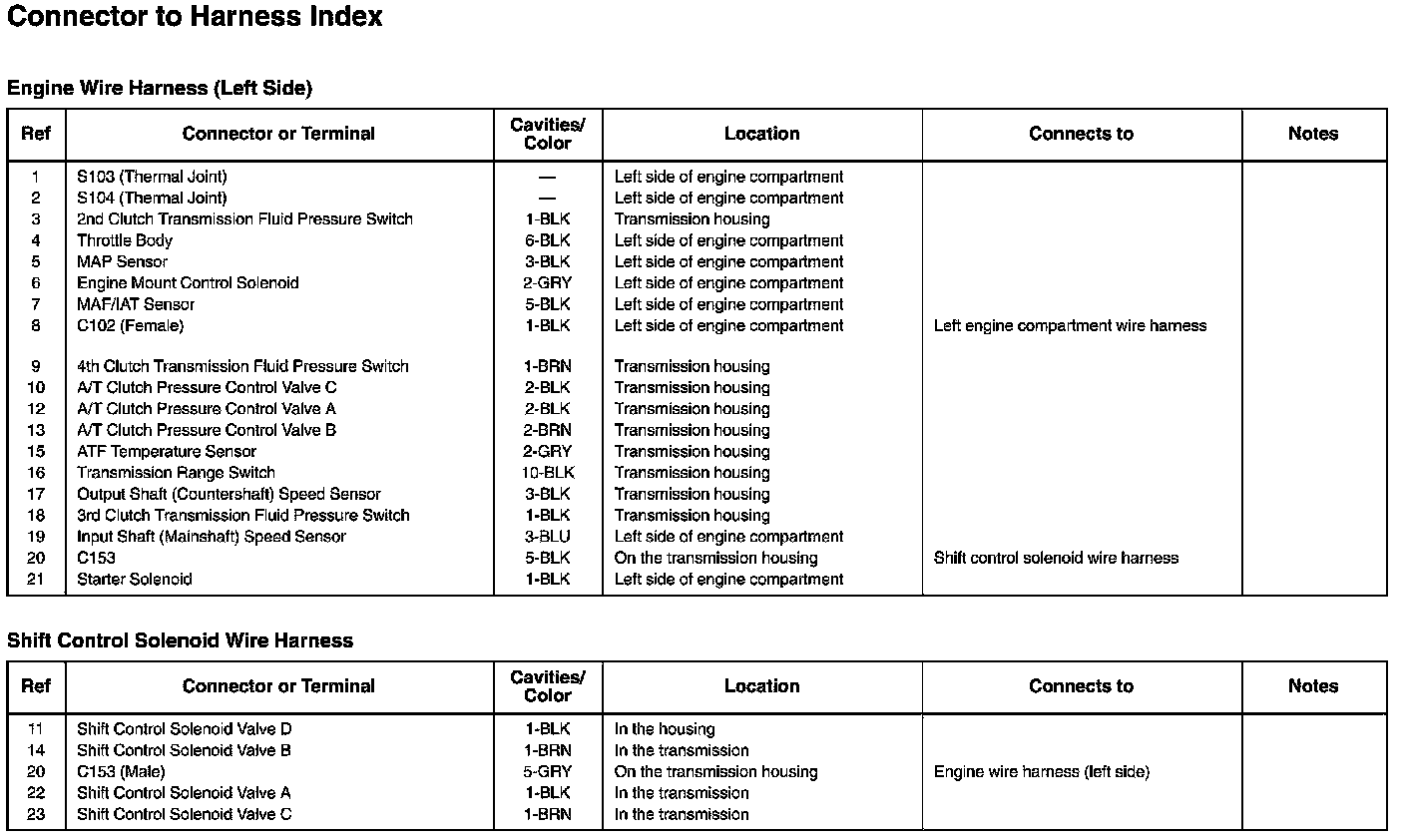

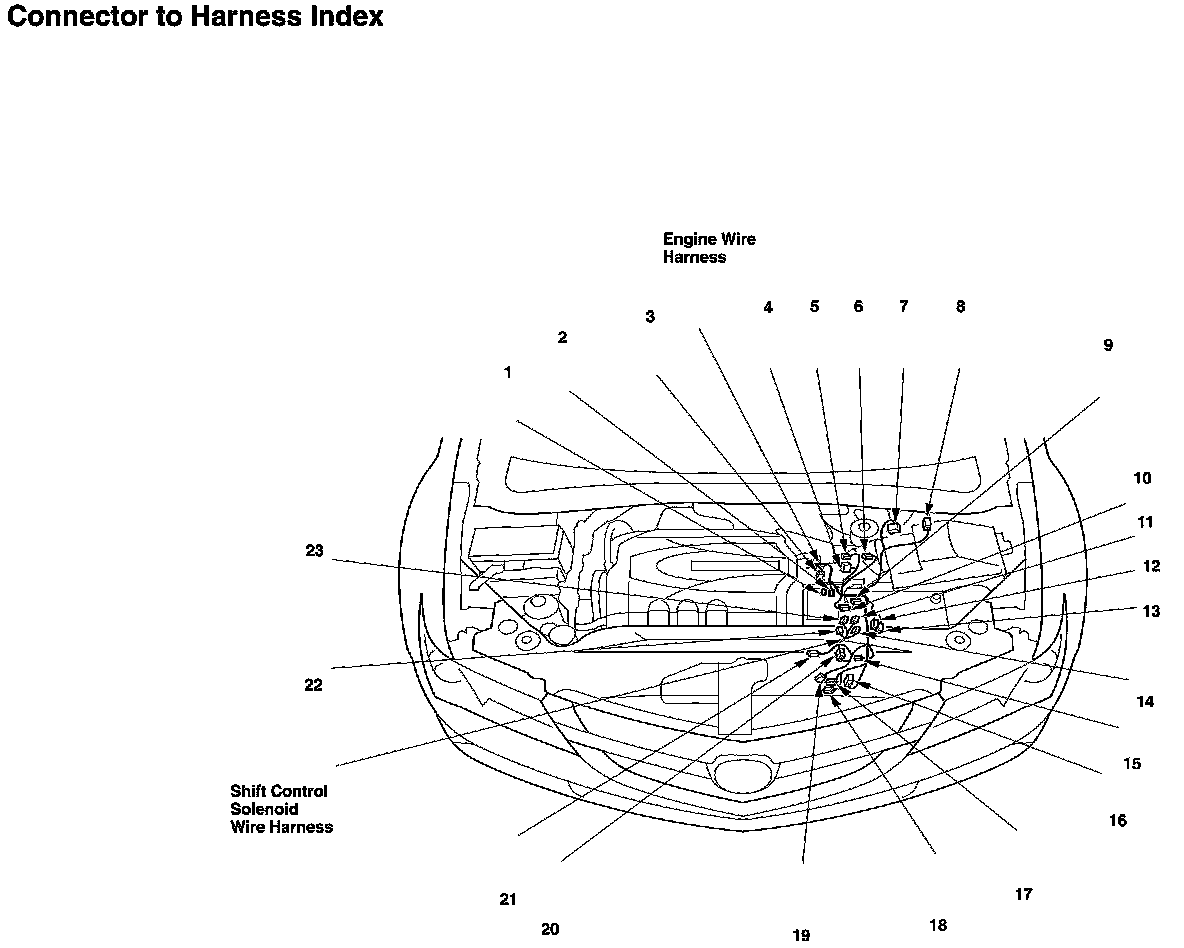

Engine Wire Harness (Left Side) And Shift Control Solenoid Wire Harness Connector And Harness Locations
