Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Driver's Seat Wire Harness, Driver's Seat Sub-Harness And Lumbar Support Harness Connector And Harness Locations

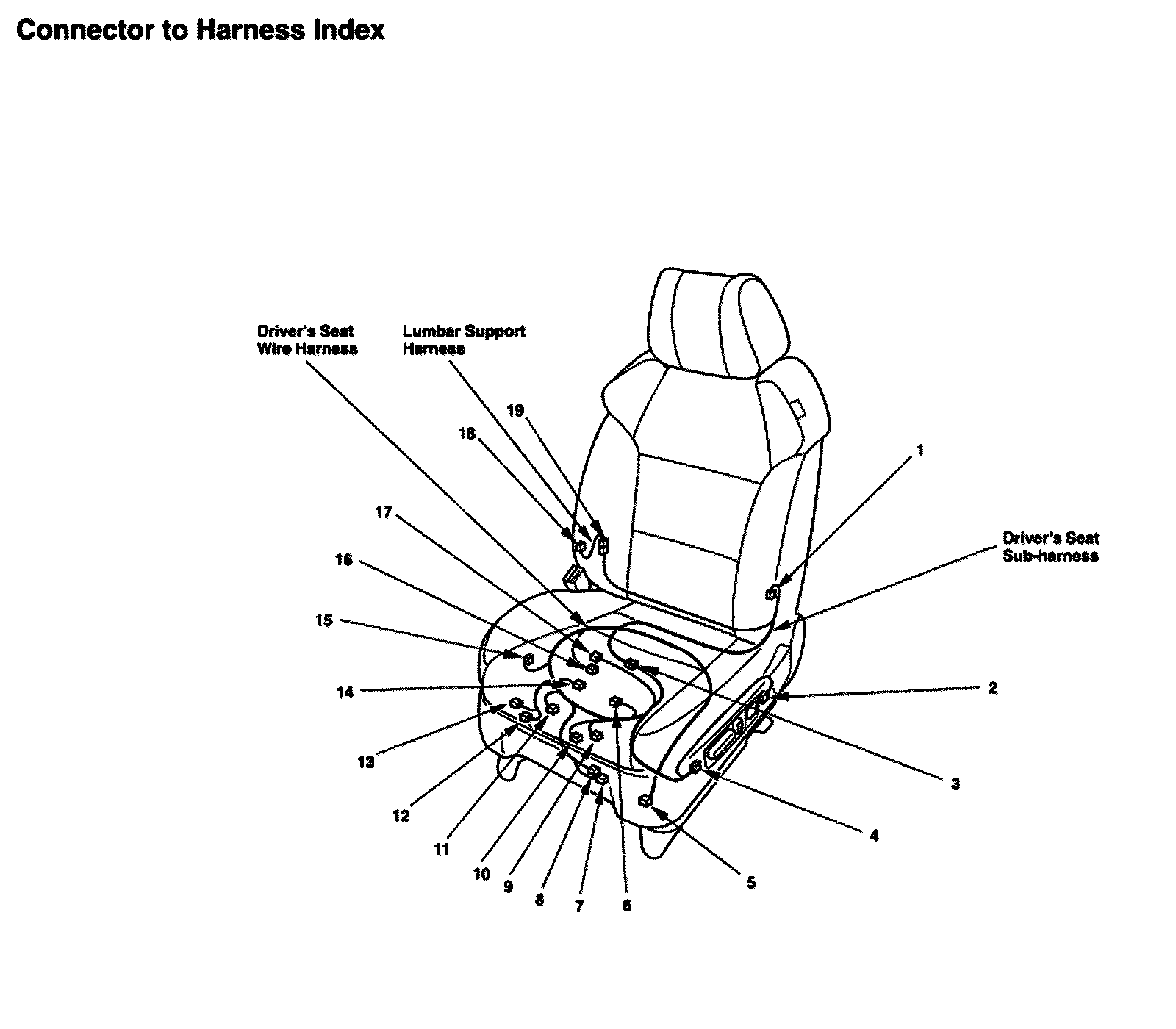

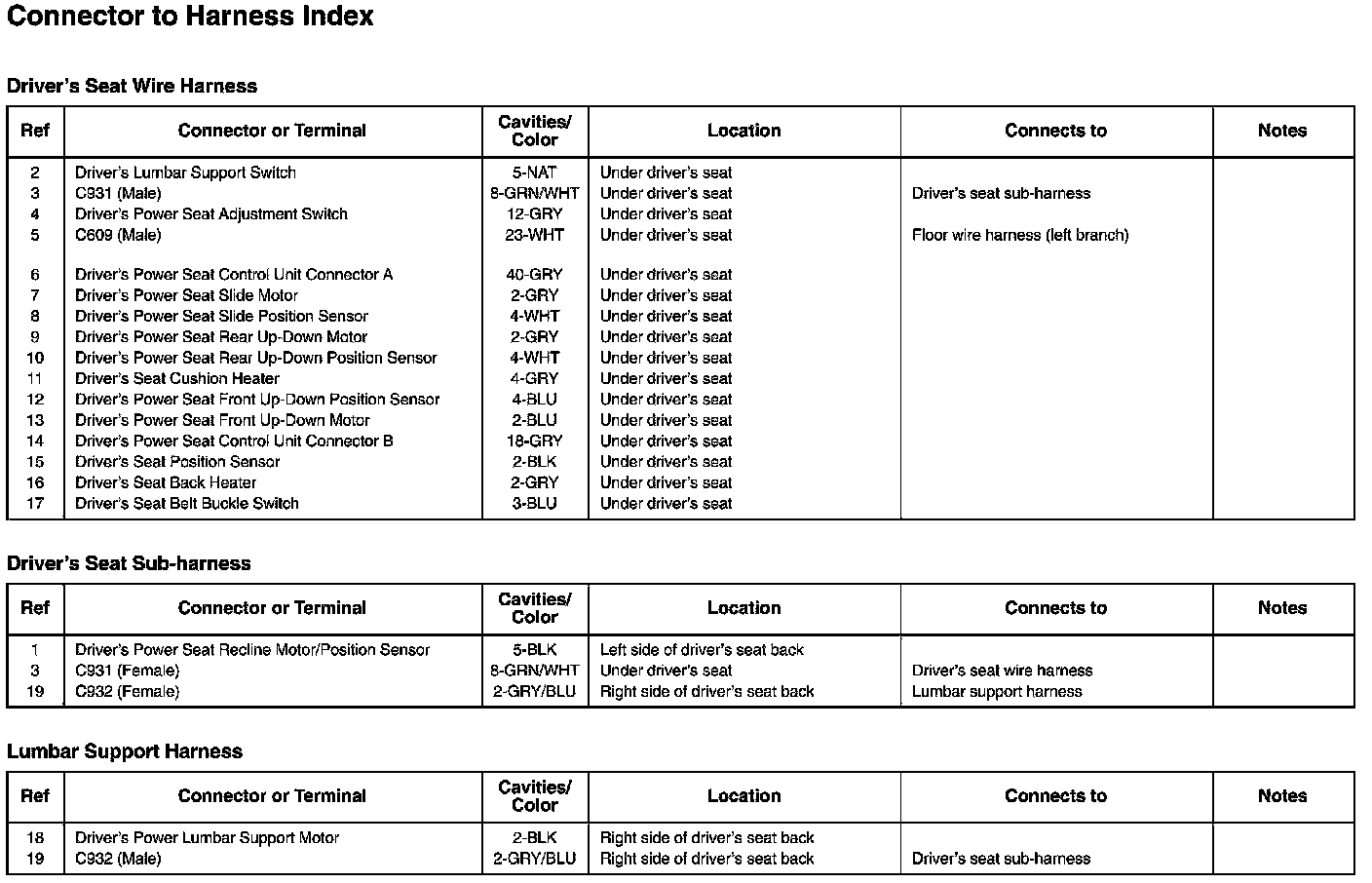

Driver's Seat Wire Harness, Driver's Seat Sub-Harness And Lumbar Support Harness Connector And Harness Locations
