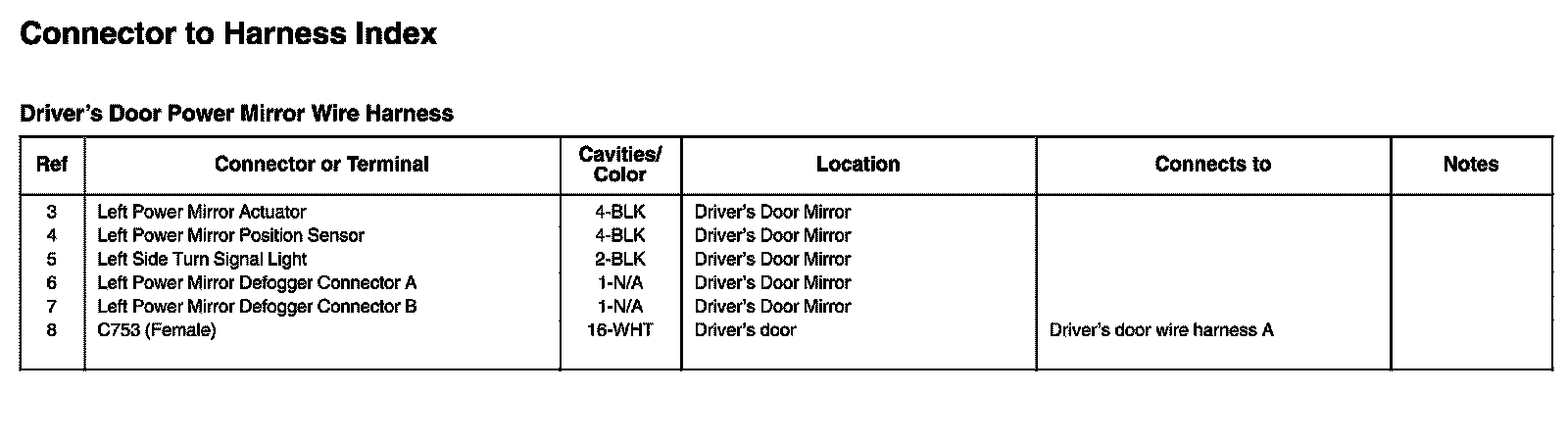

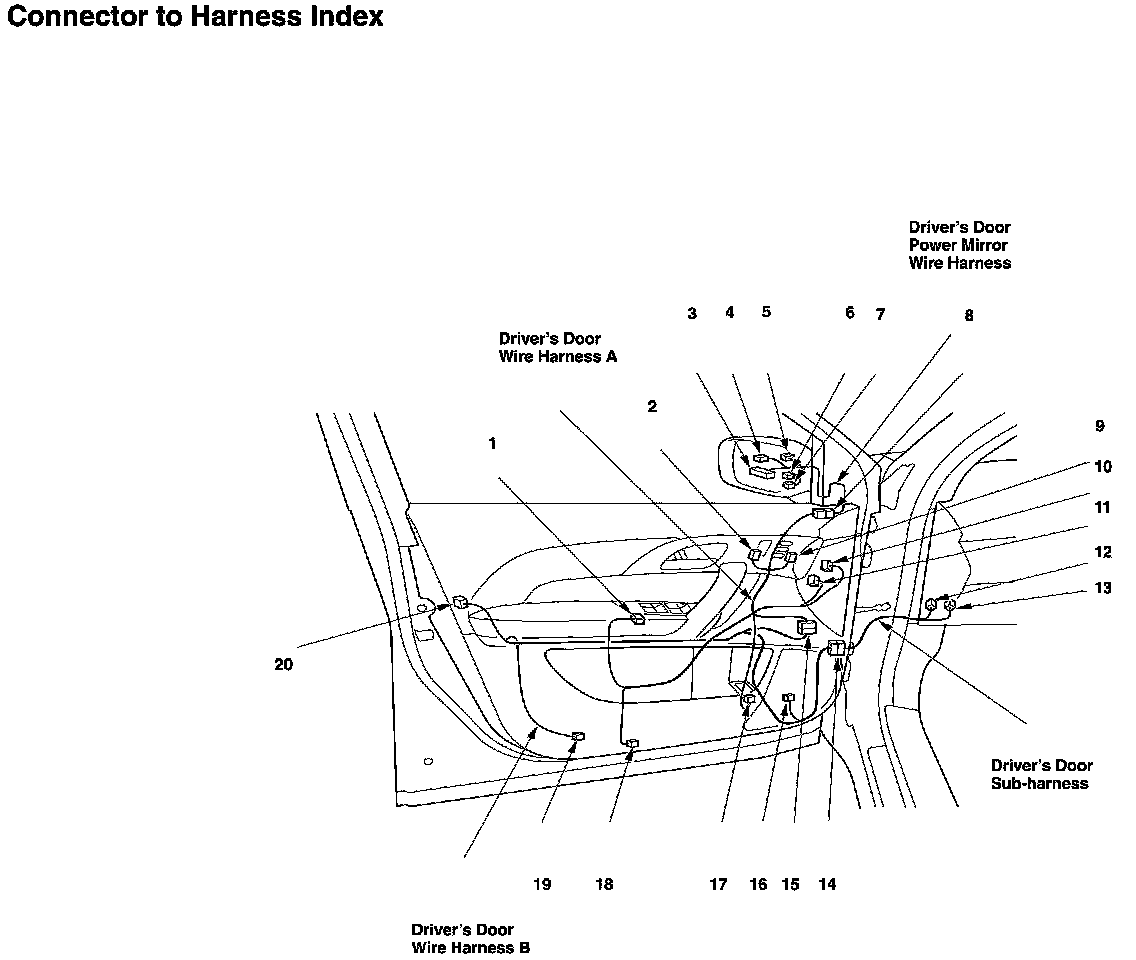

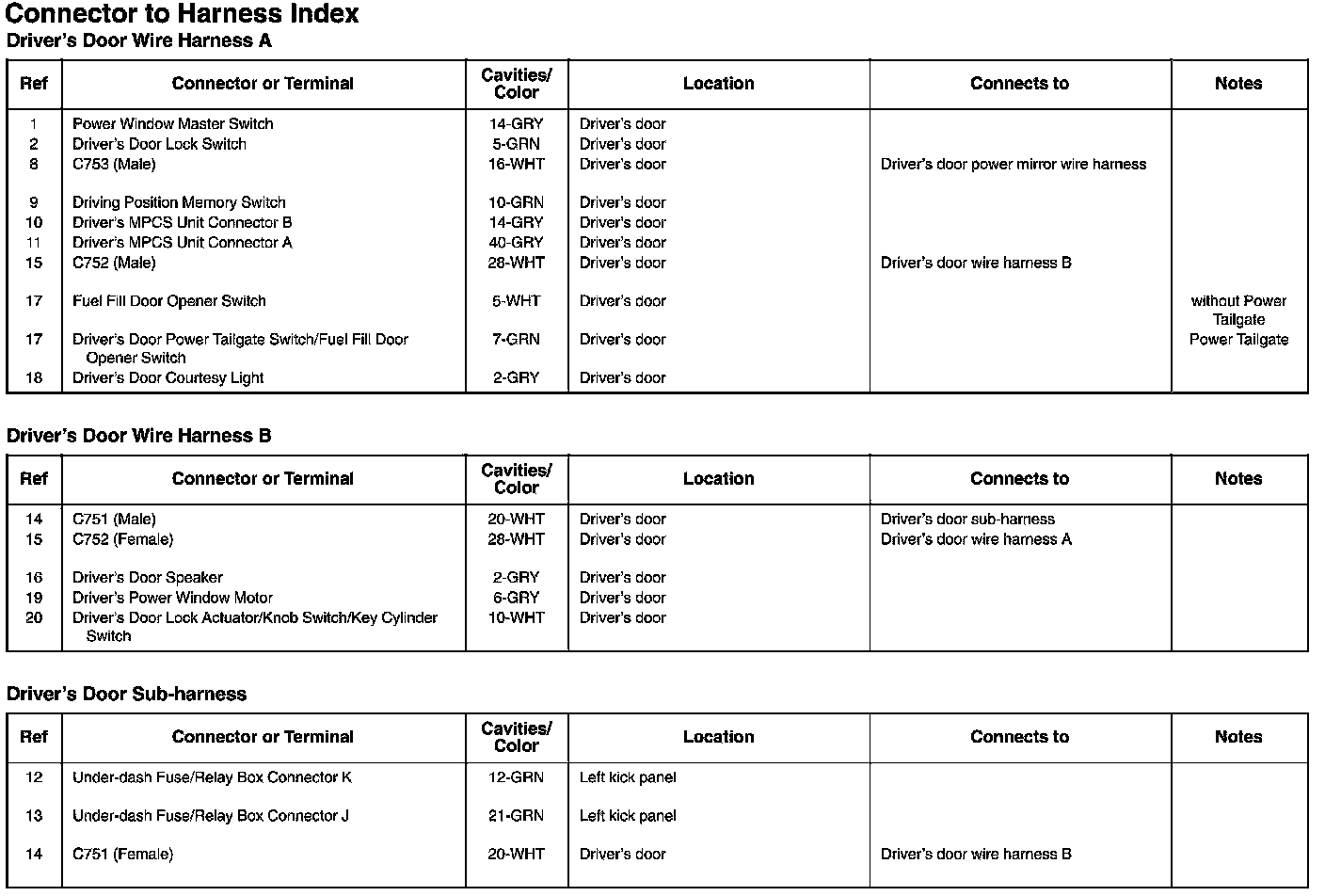

Driver's Door Wire Harness A, Wire Harness B, Sub-Harness and Power Mirror Wire Harness Connector and Harness Locations
Driver's Door Wire Harness A, Wire Harness B, Sub-Harness and Power Mirror Wire Harness Connector and Harness Locations
