Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Dashboard Wire Harness (View Of Passenger's Side) Connector And Harness Locations

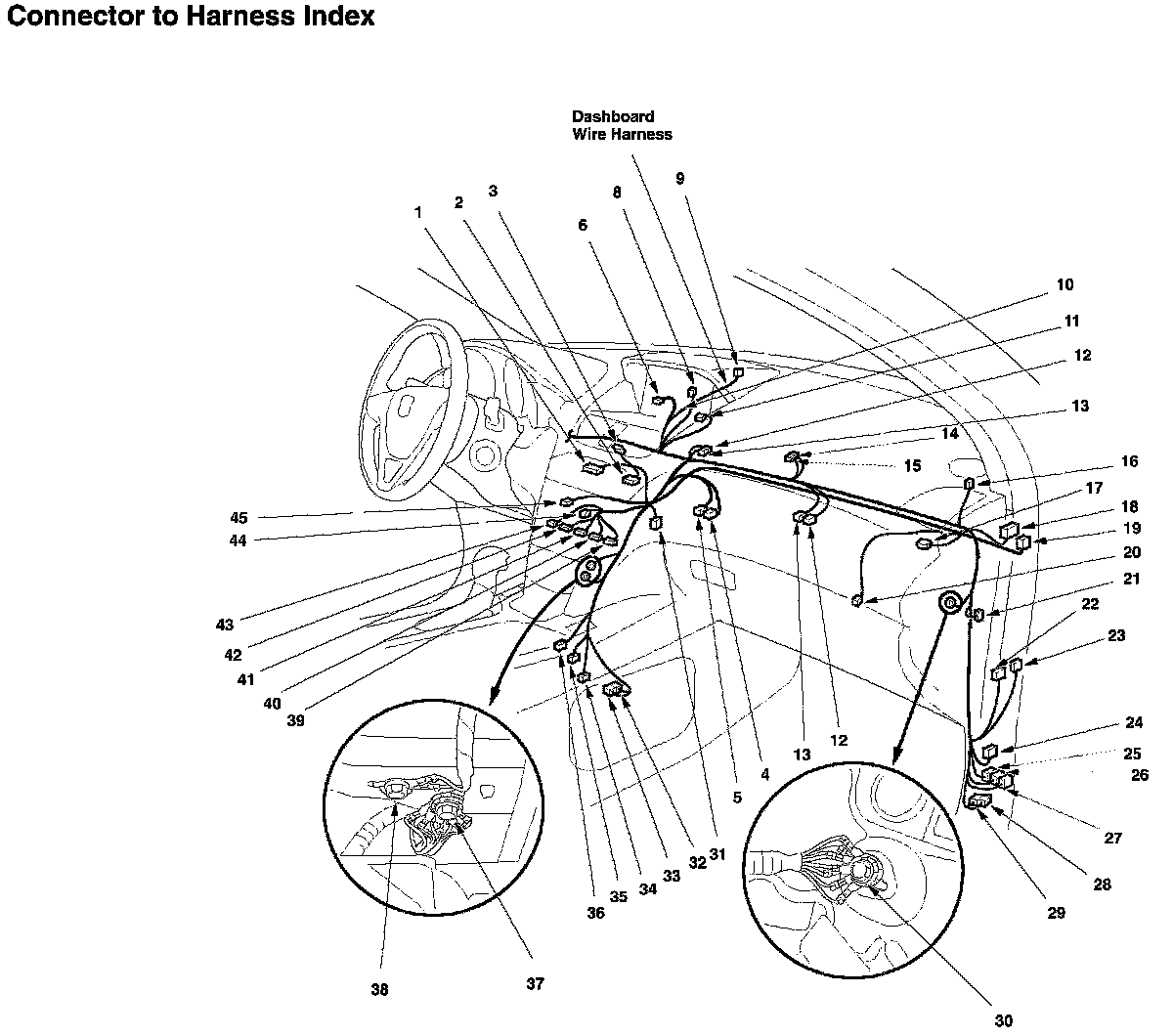

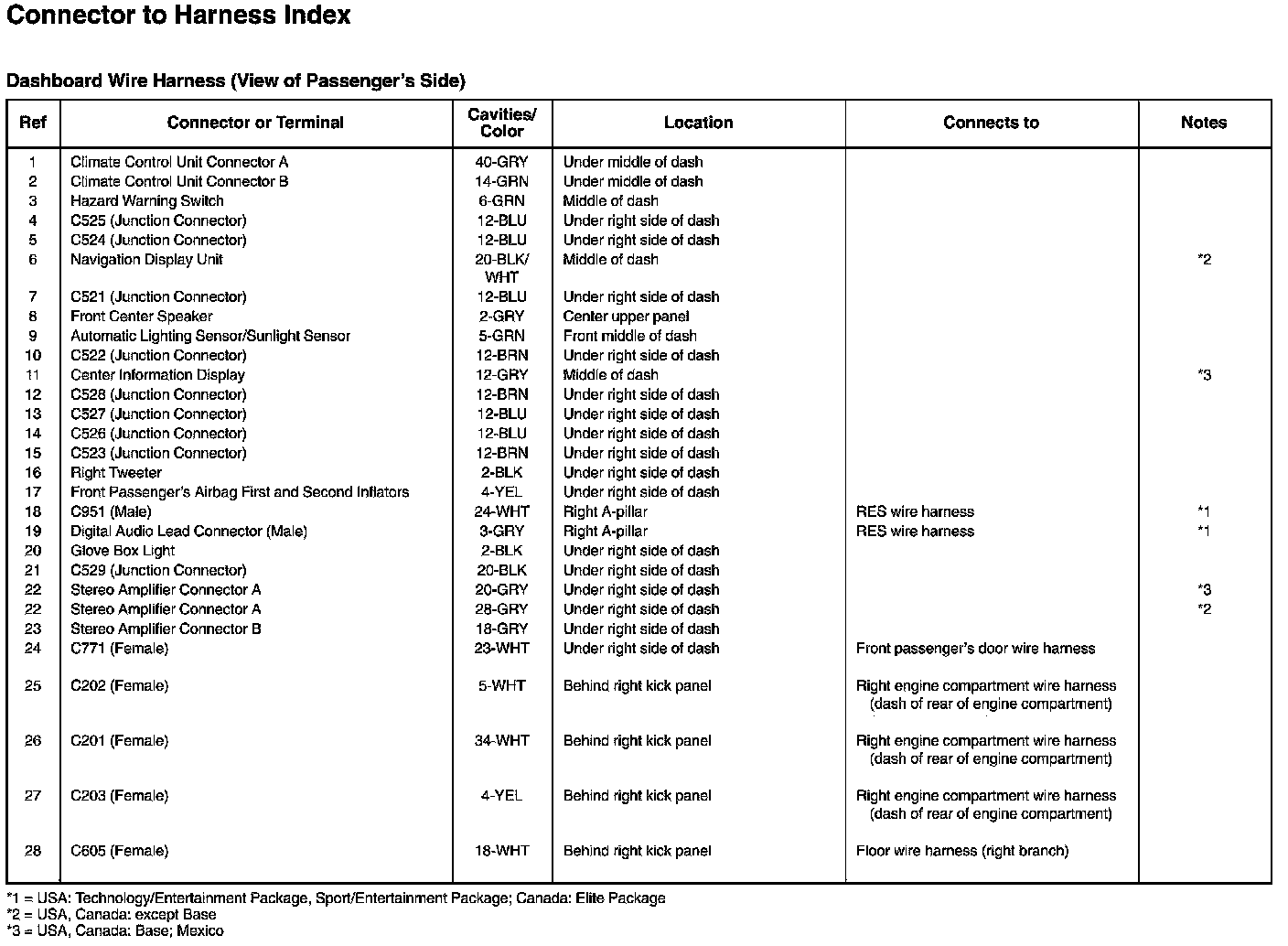

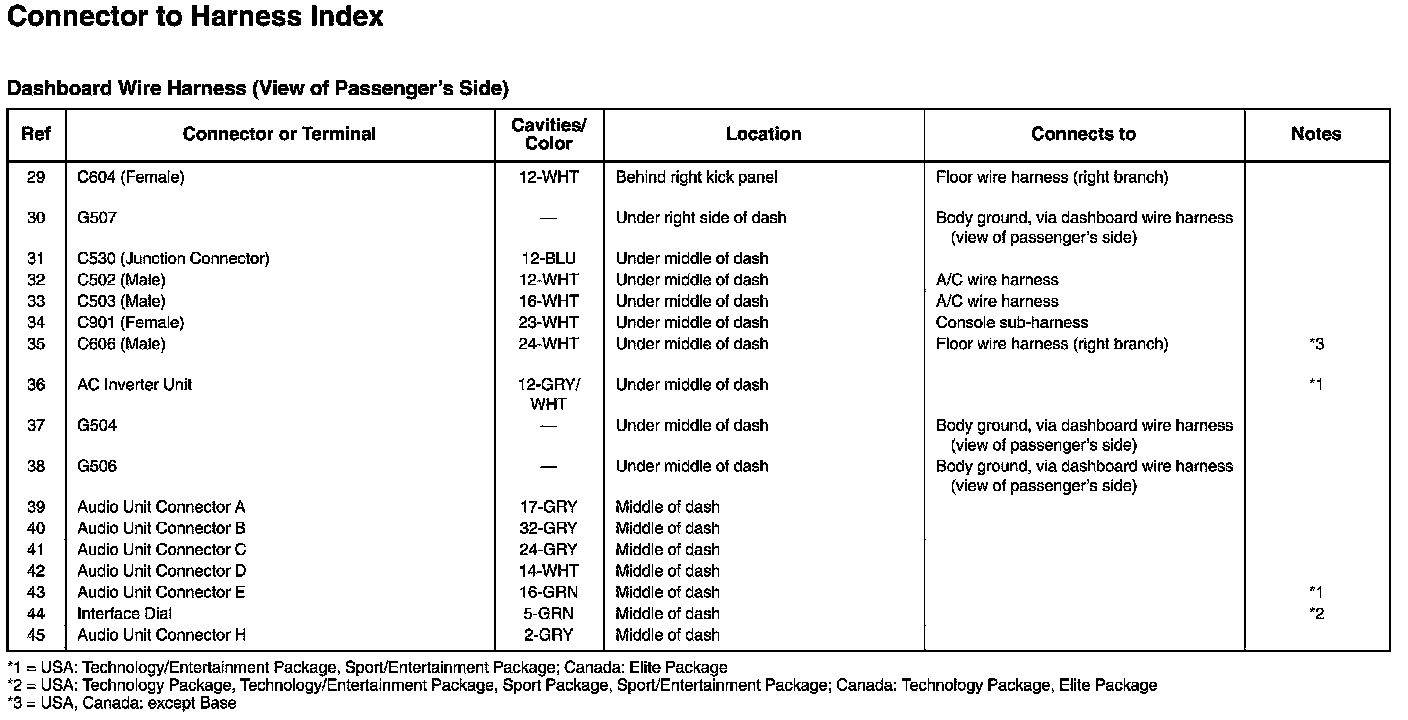

Dashboard Wire Harness (View Of Passenger's Side) Connector And Harness Locations
