Home >> Acura >> 2009 >> MDX V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Dashboard Wire Harness (Driver's Side), Power Tilt/Telescoping Steering Motor Position Sensor Connector and Harness Locations

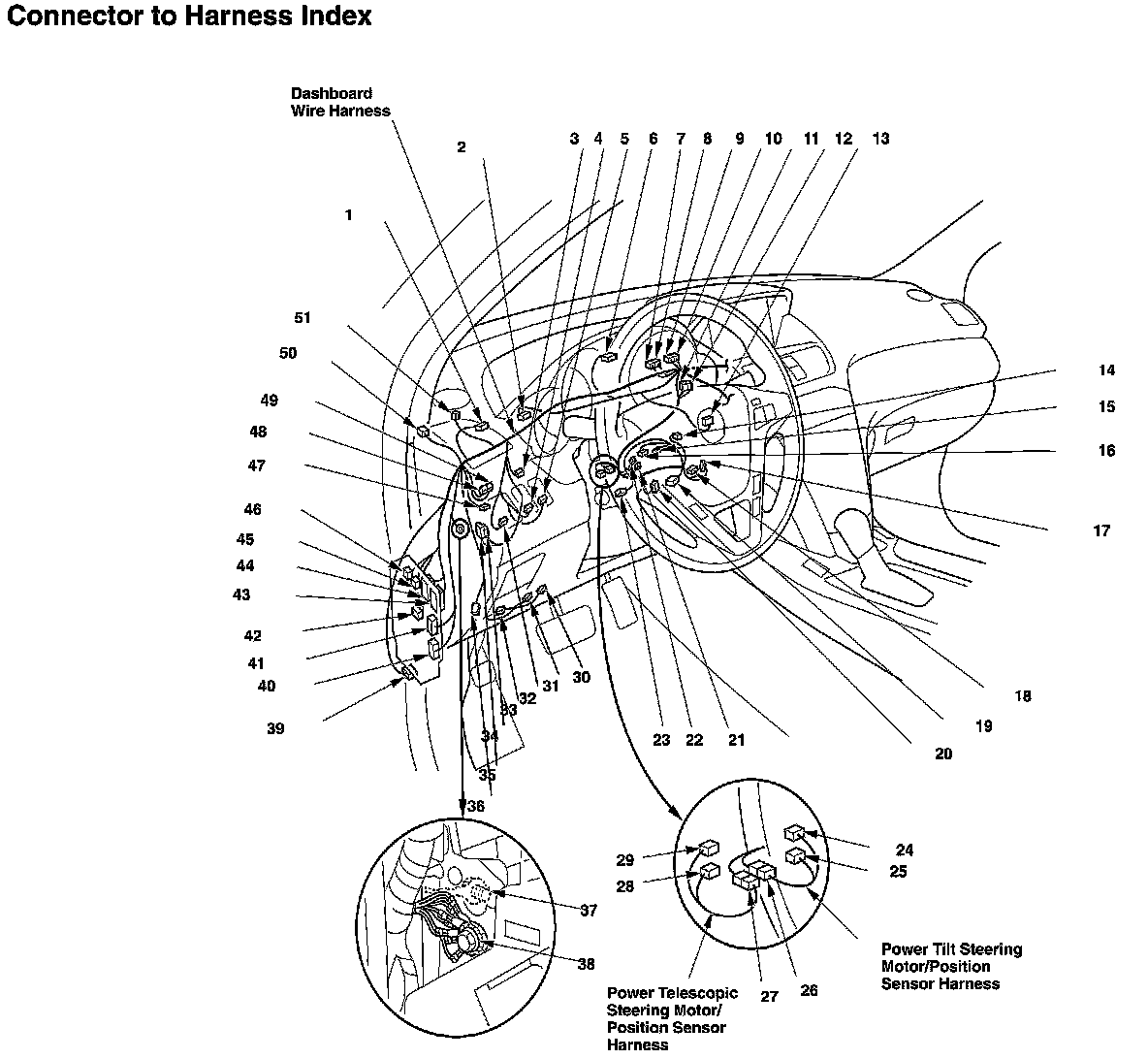

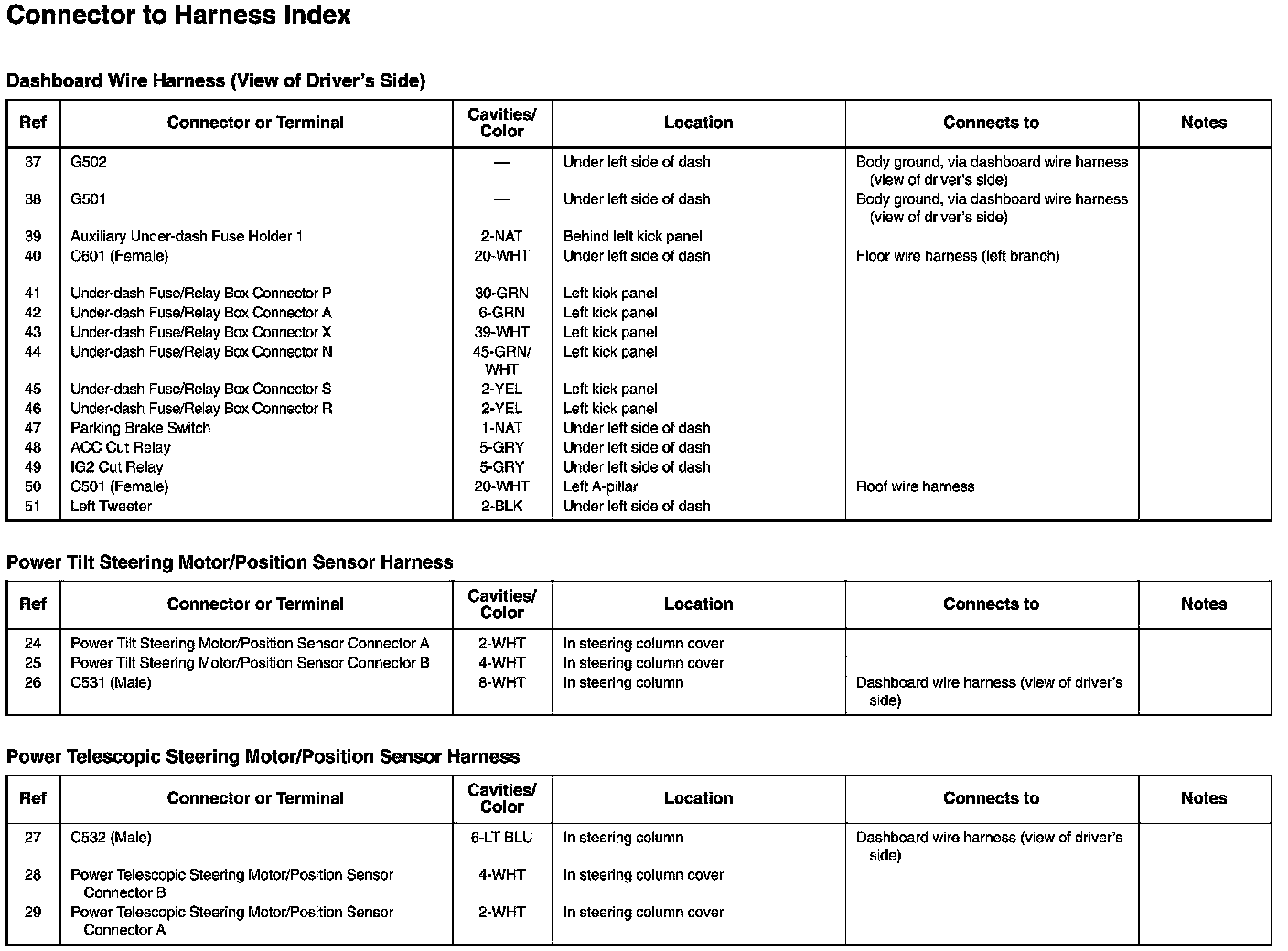

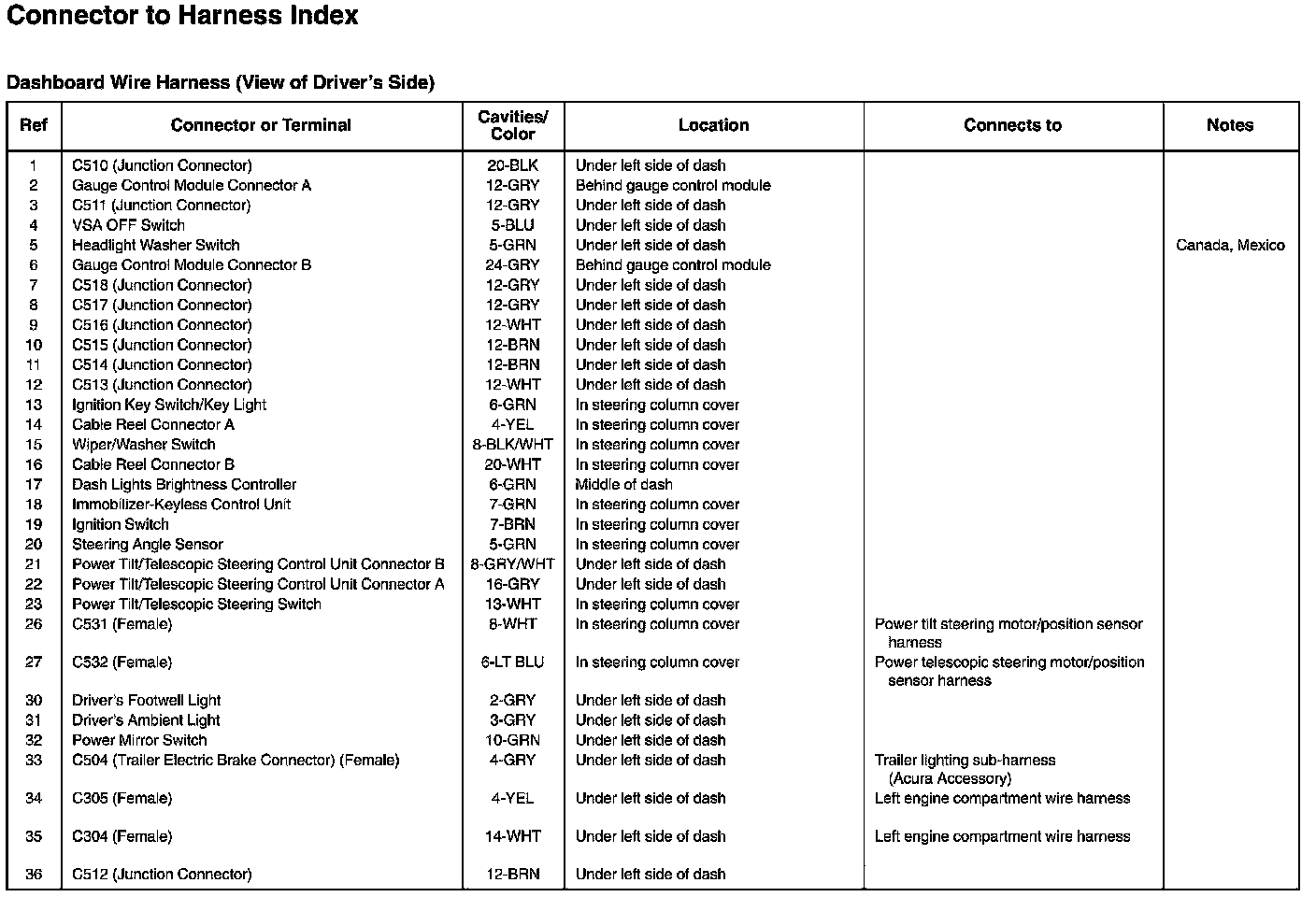

Dashboard Wire Harness (Driver's Side), Power Tilt/Telescoping Steering Motor Position Sensor Connector and Harness Locations
