Crankshaft Gear/Sprocket: Service and Repair

Timing Belt Drive Pulley Replacement

1. Remove the timing belt. Timing Belt Removal

2. Remove the crankshaft position (CKP) sensor. Service and Repair

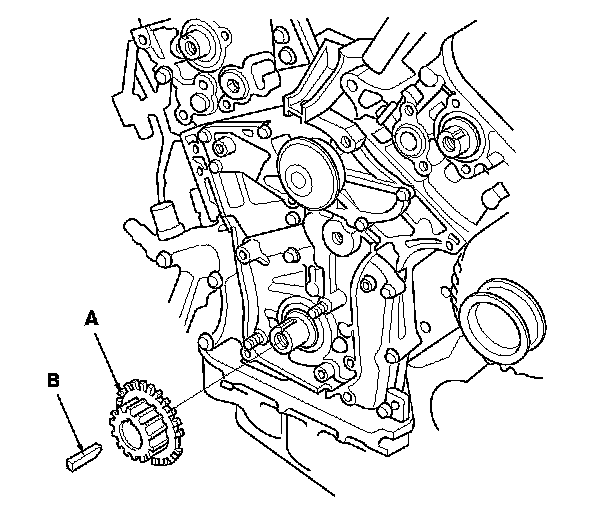

3. Remove the timing belt drive pulley (A) and key (B).

4. Inspect the timing belt drive pulley and key for damage. If it is cracked or damaged, replace the timing belt drive pulley.

5. Install the new timing belt drive pulley.

6. Install the CKP sensor. Service and Repair

7. Install the timing belt. Timing Belt Installation

8. Do the CKP pattern clear/CKP pattern learn procedure. Initial Inspection and Diagnostic Overview
